The Verge D9 is a trailblazer. Born out of our 451 Verge design philosophy, it has bigger race wheels, T-Tuned™ geometry, and a wide 1x drivetrain. It’s about as much value as we could condense into one bike, and it’s ready for any upgrades you can throw at it.

HIGHLIGHTS:
-New colors and updated styling
-Verge quality, style, and performance at an entry-level price point
-Shimano hydraulic disc brakes for all-weather stopping power

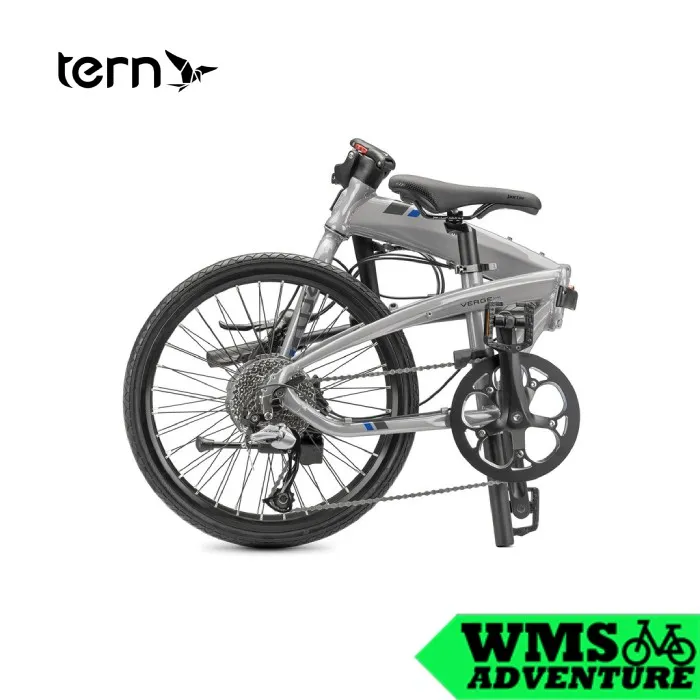

-Folds in under 10 seconds—fits under a desk
-Rides with exceptional comfort and stability thanks to our unique technology and T-Tuned geometry
-451 wheels deliver a full-sized ride with minuscule impact on the folded size
-Shimano Acera drivetrain, with 11-36T for all-purpose versatility
-Tern Porter™ saddle for easy shoulder-mounted bike carrying

GENERAL INFO
SPEEDS:
1 x 9
WEIGHT:
12.8 kg (28.2 lb)
GEAR INCHES:
30" - 97" (2.36 - 7.72 m)
FOLDING SIZE:
44 × 80 × 74 cm (17.3 × 31.5 × 29.1 in)
FOLDING TIME:
10 seconds
FRAME SIZES:
One size
DISTANCE: SEATPOST TO HANDLEBAR:
62 - 67 cm (24.4 - 26.4 in)
DISTANCE: SADDLE TO PEDAL:
70 - 96 cm (27.6 - 37.8 in)
SUGGESTED RIDER HEIGHT:
142 - 190 cm (55.9 - 74.8 in)
MAX GROSS VEHICLE WEIGHT:
120 kg (264.6 lb)
MAX RIDER WEIGHT:
105 kg (231.5 lb)

FRAME
FRAME:
Tern Verge, hydroformed aluminum, OCL+ joint, 3 patented technologies
FORK:
Integrated, hi-tensile steel, for disc

COCKPIT
HANDLEPOST:
Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 290 mm

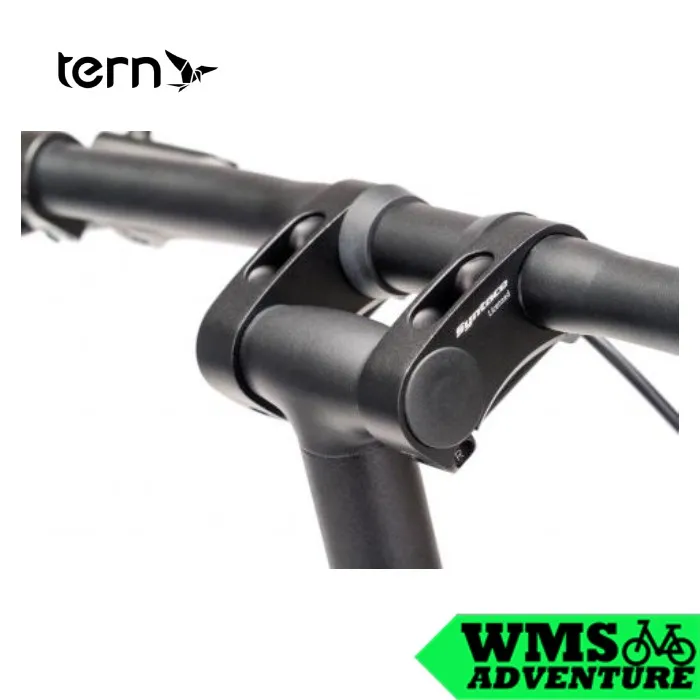

STEM:
Syntace VRO, adjustable, Built for Tern
HEADSET:
Flux, cartridge bearings, Physis integrated
HANDLEBAR:
Flat bar, 6061-AL
GRIPS/BAR TAPE:
Velo ergonomic, lock-on
SADDLE:
Tern Porter, patented GripPad design
SEATPOST:
SuperOversize, 6061-AL, micro-adjust clamp
SEATPOST CLAMP:
SuperOversize, 6061-AL

BRAKES
FRONT BRAKE:
Shimano, hydraulic disc
REAR BRAKE:
Shimano, hydraulic disc
BRAKE LEVERS:
Shimano, hydraulic disc
BRAKE CABLE & HOUSING:
Shimano, hydraulic

WHEELS
FRONT HUB:
Shimano disc
REAR HUB:
Shimano disc
SPOKES AND NIPPLES:
Stainless steel
RIMS:
Doublewall aluminum
TIRES:
CST, 37-451, light skinwall, 60 tpi

TRANSMISSION
SHIFTER(S):
Shimano, trigger, 1 x 9 spd

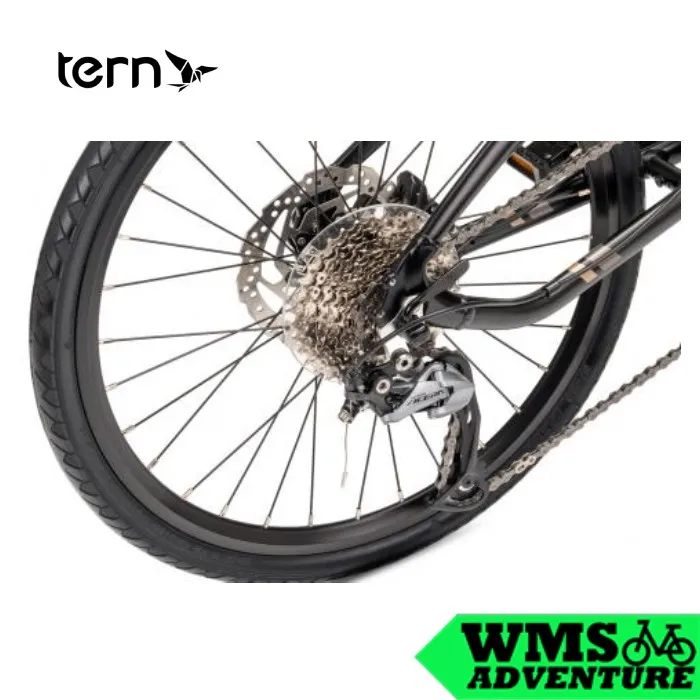

REAR DERAILLEUR:
Shimano Acera, Shadow RD
CRANKSET:
Forged 6061-AL, 53T
CASSETTE/FREEWHEEL:
11-36T, 9 spd
BOTTOM BRACKET:
Cartridge, sealed bearings
CHAIN:
KMC 9 spd
PEDALS:
Folding, alloy body
SHIFTER CABLE & HOUSING:
SP

*Note: These are our standard model specifications. The bike's weight and folded dimension may not include racks and fenders. The specifications for your country may differ slightly. We do our best to ensure that the specifications listed here accurately reflect the exact parts found on our production bikes. However, component changes do occur for various reasons and there may be brief delays on site updates. We reserve the right to make component changes without prior notification, which may cause discrepancies with the information listed on the web.

Stock Available: Red, Grey/Silver
