GENERAL INFO

SPEEDS:

1 x 8

WEIGHT:

14.3 kg (31.5 lb)

GEAR INCHES:

31" - 91" (2.50 - 7.28 m)

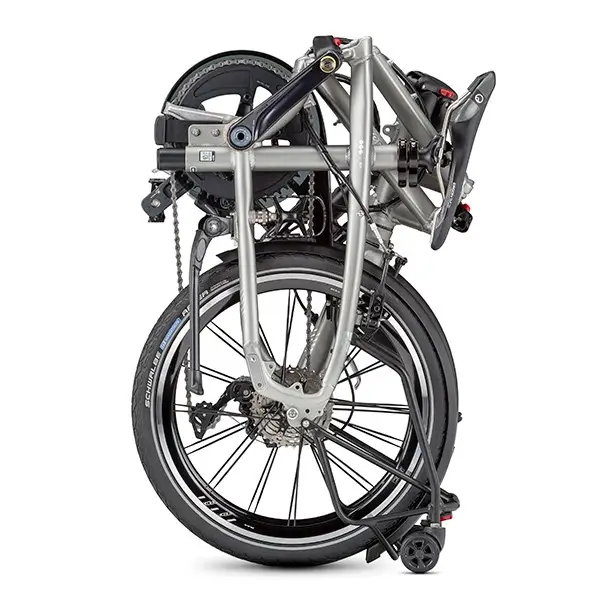

FOLDING SIZE:

35 × 81 × 52 cm (13.8 × 31.9 × 20.5 in)

FOLDING TIME:

30 seconds

FRAME SIZES:

One size

DISTANCE: SEATPOST TO HANDLEBAR:

63 - 67.5 cm (24.8 - 26.6 in)

SUGGESTED RIDER HEIGHT:

147 - 195 cm (57.9 - 76.8 in)

MAX GROSS VEHICLE WEIGHT:

120 kg (264.6 lb)

MAX RIDER WEIGHT:

105 kg (231.5 lb)

FRAME

FRAME:

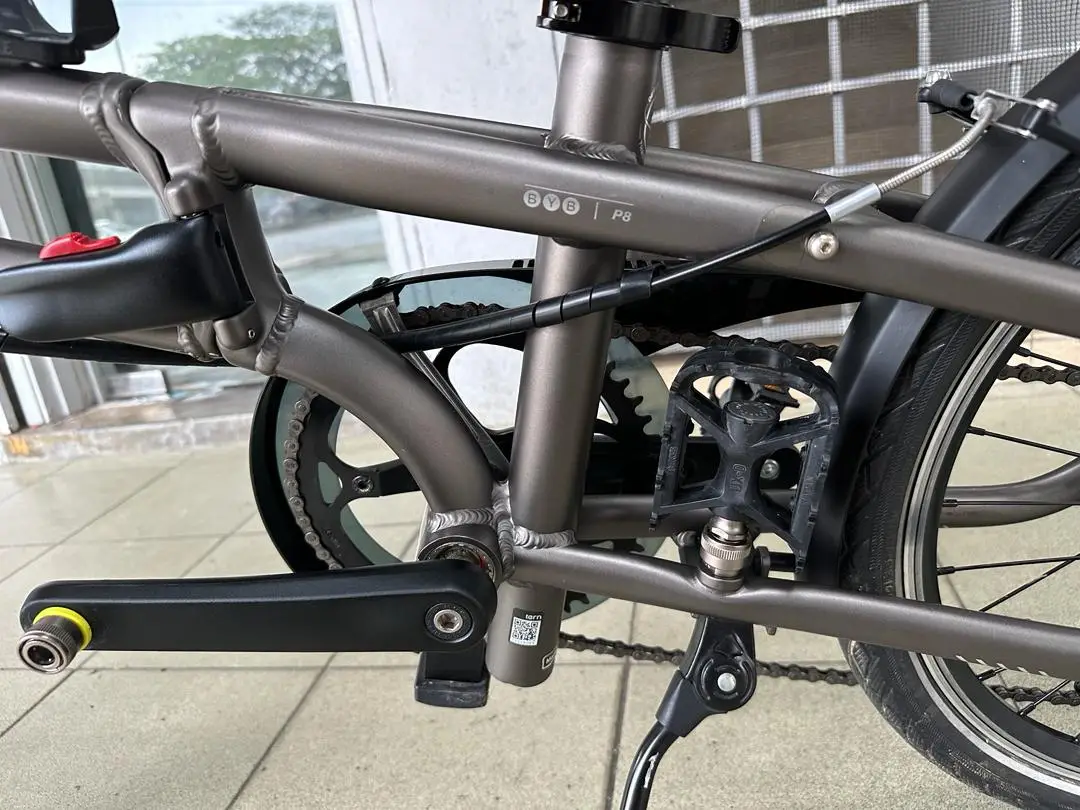

Tern BYB, Aluminum, TriFold patented technology, EFBE tested: ISO 4210

FORK:

Tern Tarsus, 6061-AL, hydroformed

COCKPIT

HANDLEPOST:

Tern Physis RF, 3D forged, 5 patented technologies

STEM:

Tern Andros (G2), adjustable, forged construction, patented technology

HEADSET:

Flux, cartridge bearings, Physis integrated

HANDLEBAR:

Flat bar, 6061-AL, Andros adapted

GRIPS/BAR TAPE:

Velo ergonomic, lock-on

SADDLE:

Tern Porter, patented GripPad design

SEATPOST:

Tern Telescope, 34.9/30.9 mm, 2014-AL

SEATPOST CLAMP:

Oversize, 6061-AL, 2pc

BRAKES

FRONT BRAKE:

Kinetix SpeedStop V-brakes, stainless hardware

REAR BRAKE:

Kinetix SpeedStop V-brakes, stainless hardware

BRAKE LEVERS:

Shimano

BRAKE CABLE & HOUSING:

Jagwire, anti-compression housing, Slick Lube liner

WHEELS

FRONT HUB:

Kinetix Neutron Mini 74, sealed cartridge bearing Opt: BioLogic Joule 3 dynamo

REAR HUB:

Novatec, sealed cartridge bearing

SPOKES & NIPPLES:

Stainless steel

RIMS:

Doublewall aluminum

TIRES:

Schwalbe Citizen, 42-406, puncture protection, Reflex

TRANSMISSION

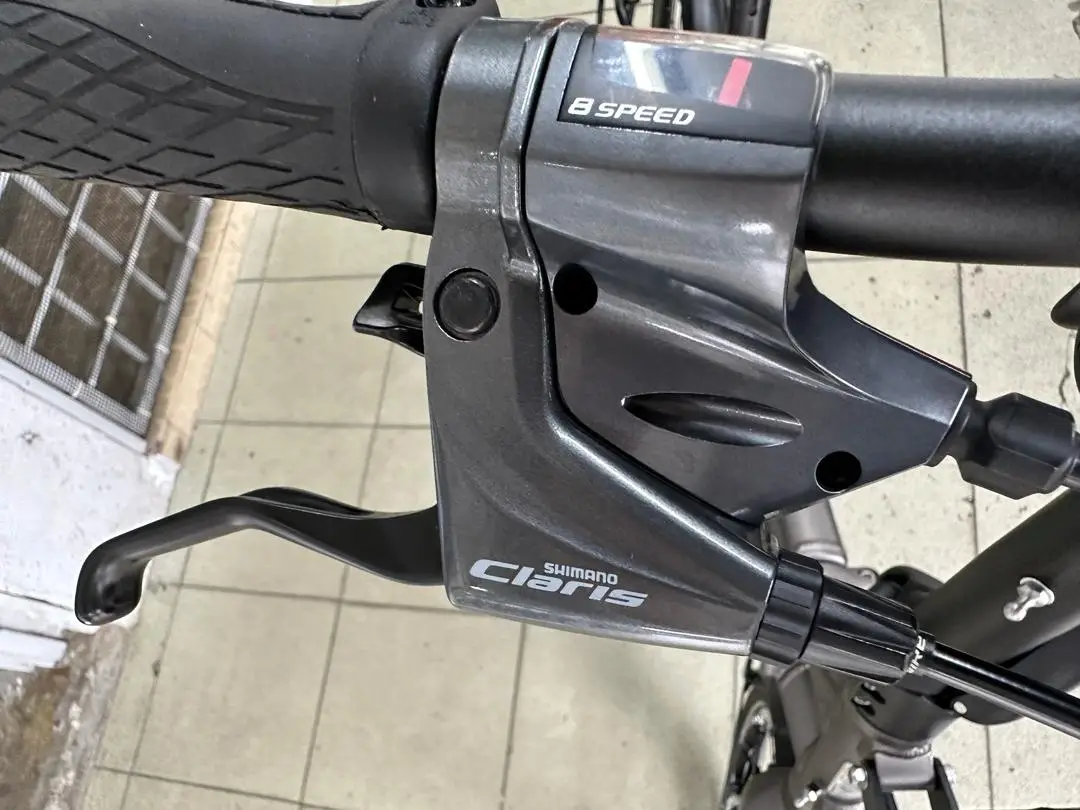

SHIFTER(S):

Shimano, 1 x 8 spd

FRONT DERAILLEUR:

n/a

REAR DERAILLEUR:

Shimano Alivio, Shadow RD

CRANKSET:

Forged 6061-AL, 52T

CASSETTE/FREEWHEEL:

Shimano 11-32T, 8 spd

BOTTOM BRACKET:

FSA, Cartridge, sealed bearings

CHAIN:

KMC, 8 spd

PEDALS:

MKS EZY

SHIFTER CABLE & HOUSING:

Jagwire LEX-SL, slick treatment, alloy ferrules

BELLS & WHISTLES

BELL:

Pitch, brass

CHAINGUARD:

Hebie

KICKSTAND:

Deluxe center mount

CLIP SYSTEM:

Anchor Bolt

LUGGAGE SOCKET:

Combo Mount

FRONT LIGHT:

Opt: Tern Valo 2, integrated, 41 lux/150 lumens

REAR LIGHT:

Opt: Deluxe LED

FENDERS:

SKS, stainless hardware

RACK(S):

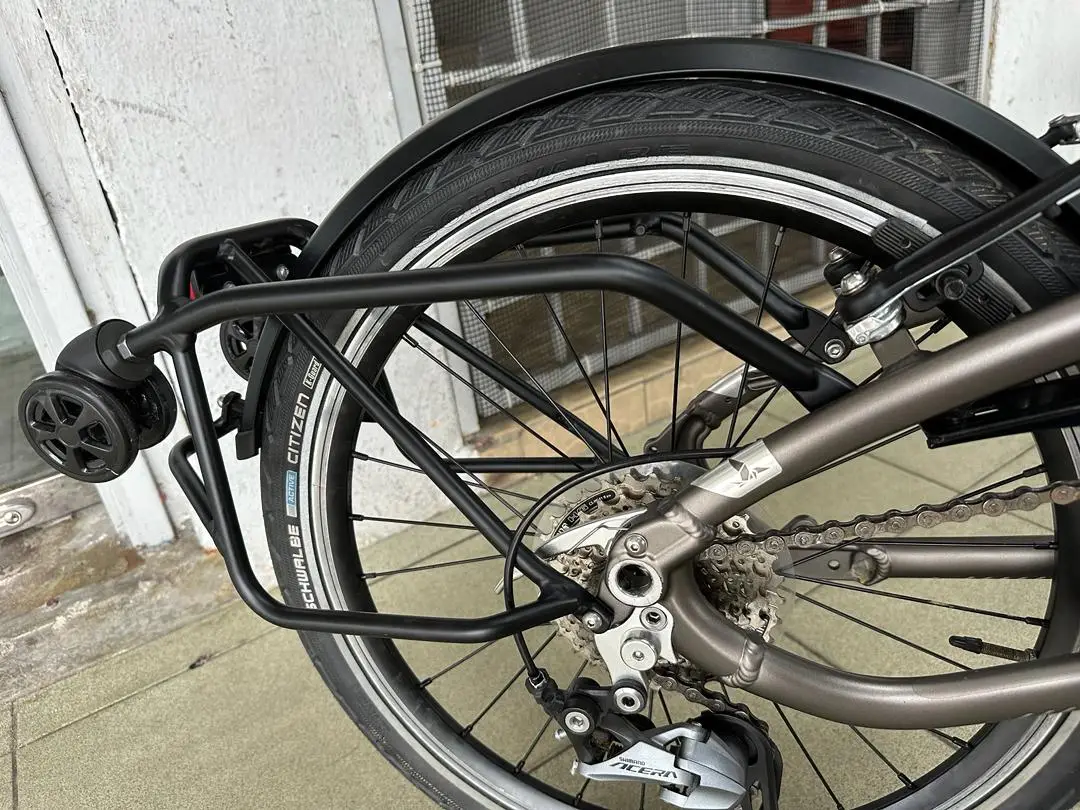

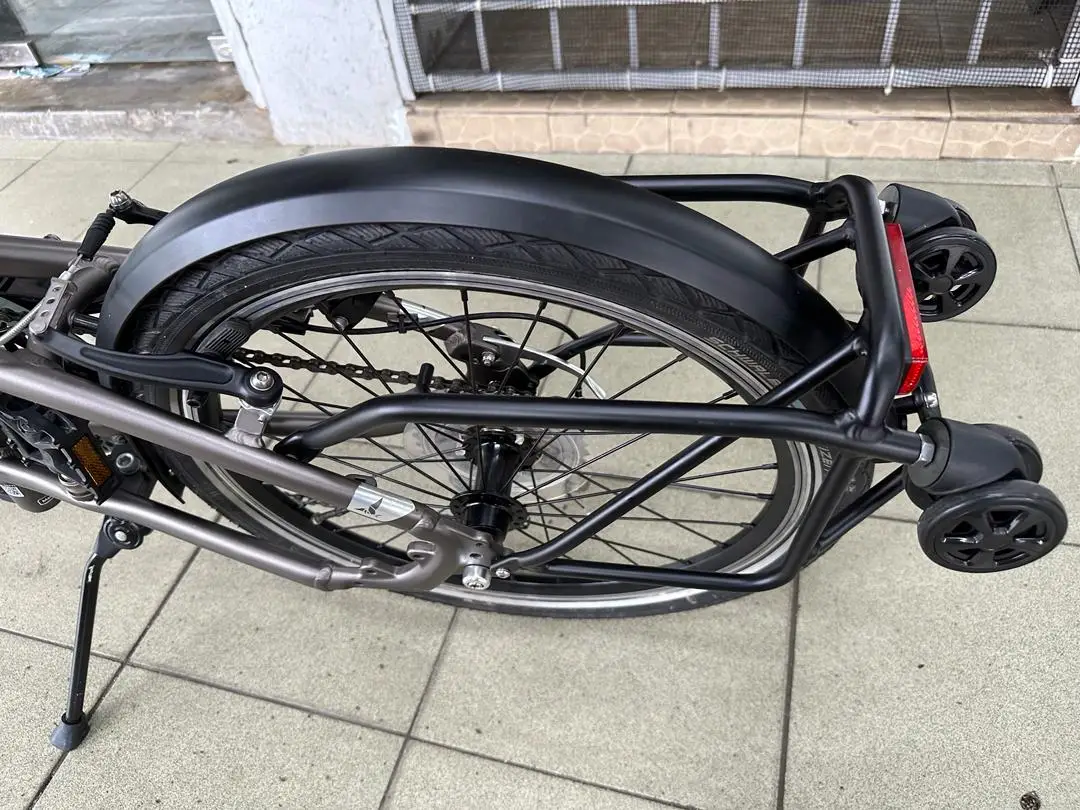

Tern Metro Transit Rack; Max load weight: 20 kg (44 lb)

ACCESSORY:

Pedal Holde

Conditions: Like New
