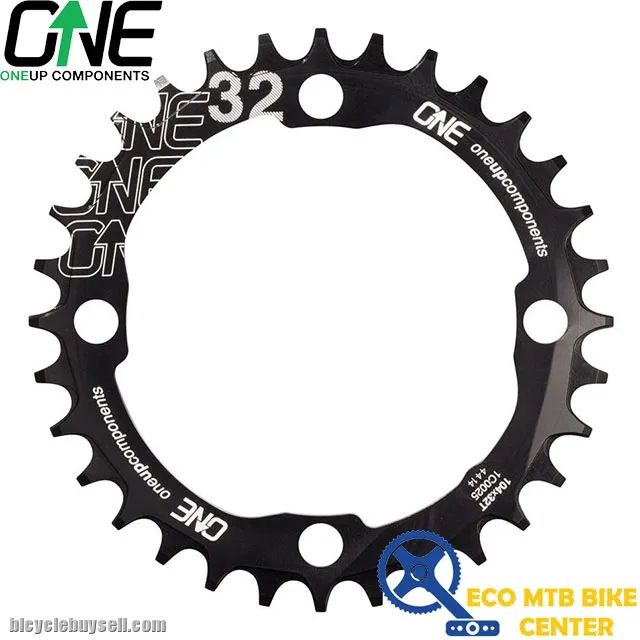

ONEUP COMPONENTS Round Chainring 104 BCD
Description
OneUp your complete drivetrain with our new Narrow Wide Chainrings.
- Narrow Wide tooth profile eliminates chain drop with the perfect chain mesh fit
- Perfect chainline with 2mm Shims included with 32T and 34T rings (30T rings have built in offset). For a quieter drivetrain with improved chain wear and best drop performance.
- Reuse your existing 8-10mm long ring hardware. No new bolt packs required, saves you $15.

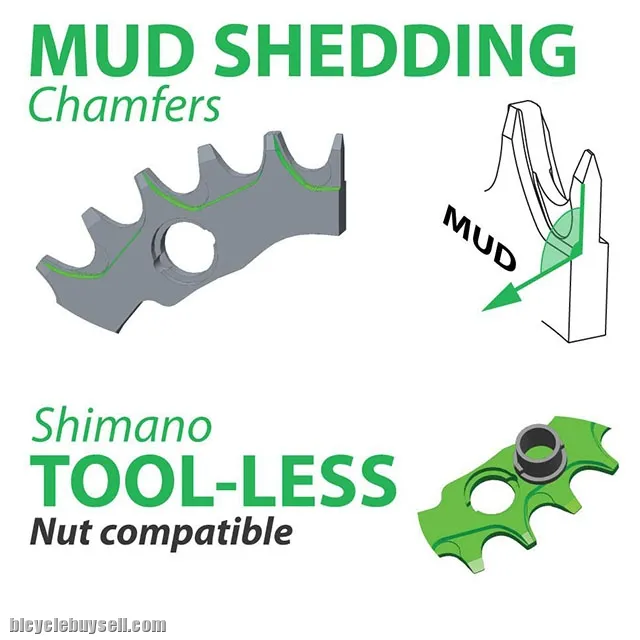

- Aggressive crud chamfers for awesome mud shedding performance and extended ring life.
- Reinforced Wide tooth design provides maximum ring durability when run without a bash.
- Made from hard wearing 7075-T6 aluminum plate
- 30T rings have integrated shims and chainring bolt threads to allow the smallest ring size possible on a 104 BCD crank (loose shims are only included with the 32T-36T sizes).

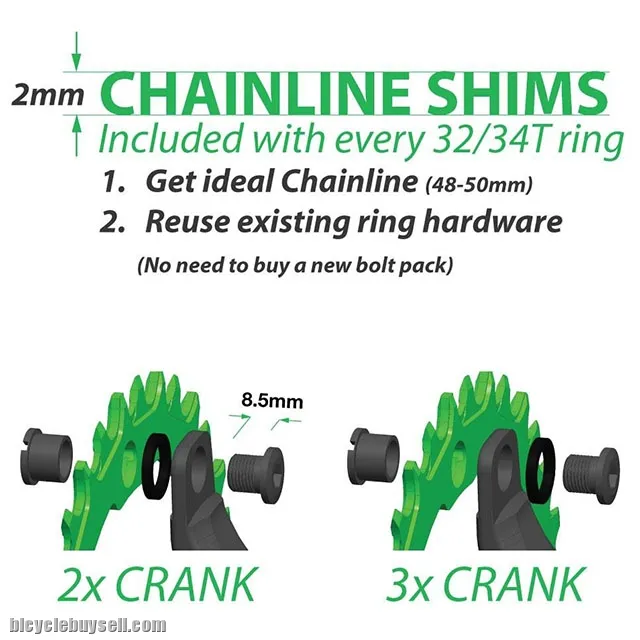

*Shims - Included with 32T and 34T rings. For 2x crank conversions, shims between the crank and ring get you back to an ideal 49-50mm chainline. For 3x crank conversions, shims under the bolt heads allow reuse of your 3x hardware - No new bolt packs required!
SPEC
Material: 7075-T6
Weight: 40g (30T), 44g (32T), 54g (34T), 2g (4x shims)

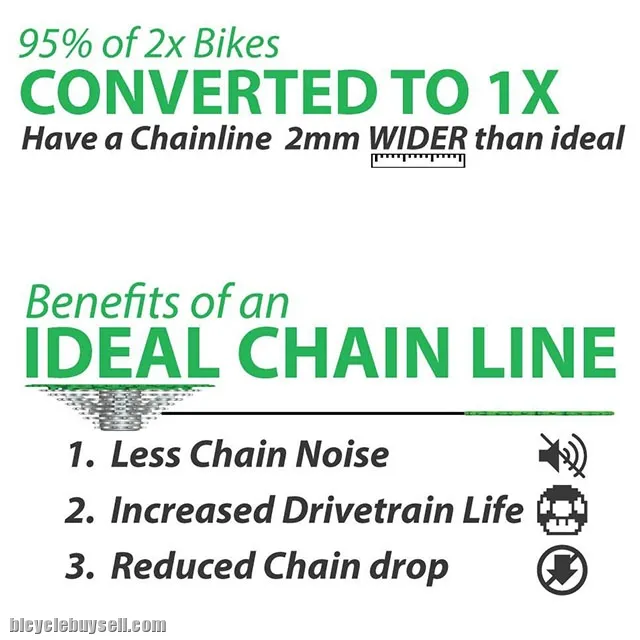

Chainline Explained
Compatible with: 9, 10, 11 and 12 Speed Chains and 104 BCD cranks
Colors: Black, Green
