Shimano Ultegra WH-R8170-C36/ 50/ 60-TL Wheelset Tubeless Centerlock 12x100 / 12x142 Mm - HG L / EV
Description
Shimano Ultegra WH-R8170-C36-TL Wheelset - Tubeless - Centerlock - 12x100 / 12x142 mm - HG L / EV | 11/12-speed
Ultegra R8100 – Leave Time Behind
When developing the Ultegra R8100 series, Shimano took a holistic and 100 % performance-oriented approach, because great speed means great responsibility. Faster than ever before, the 12-speed road groupset scores with unparalleled control and comfort anytime and anywhere – whether in an everyman race, on the hunt for a personal best time or on a companionable ride.
As with the Dura Ace R9200, not only does Hyperglide+ make its way into the Ultegra's components, also its Di2 parts rely on Wireless technology to simplify operation and ensure smooth shifting.

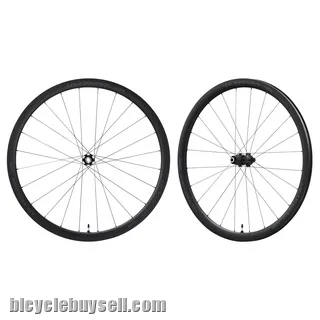

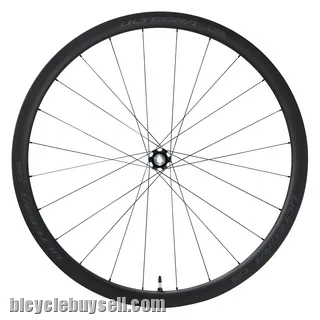

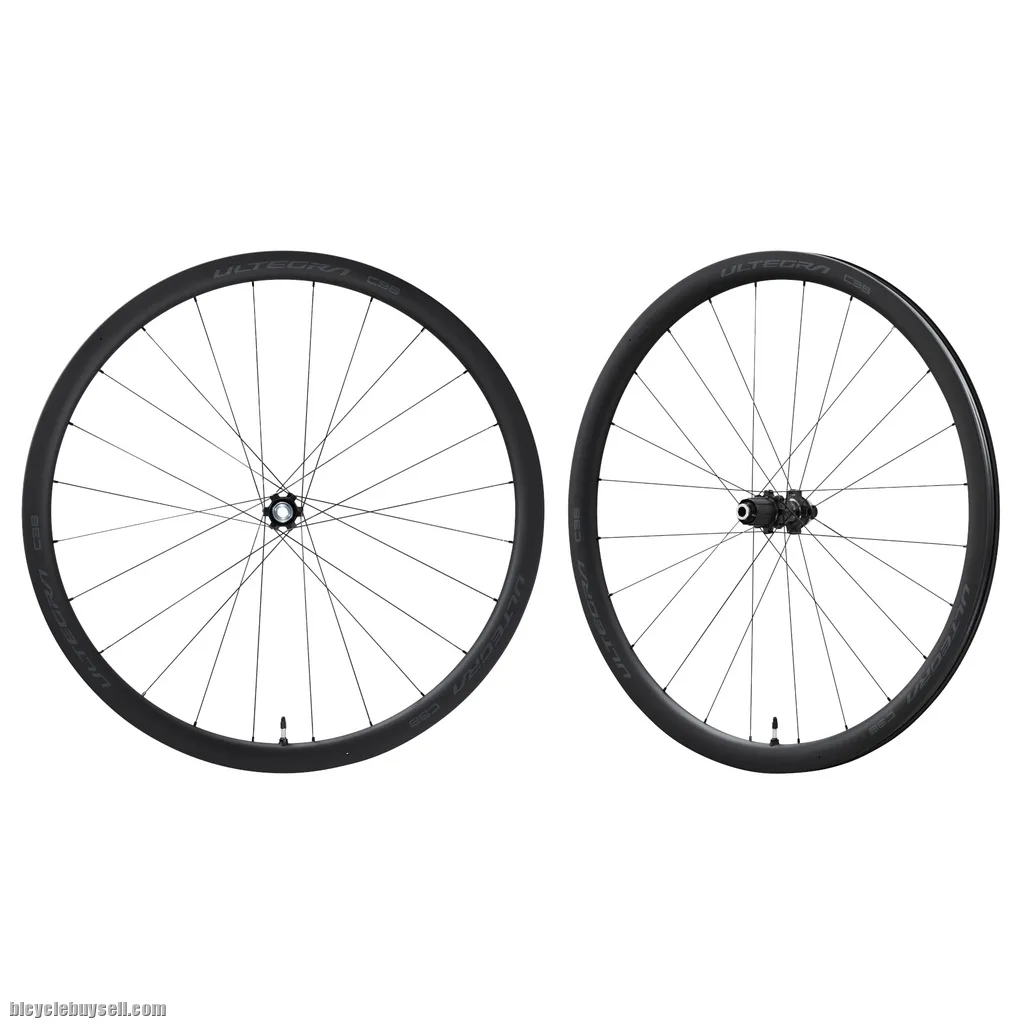

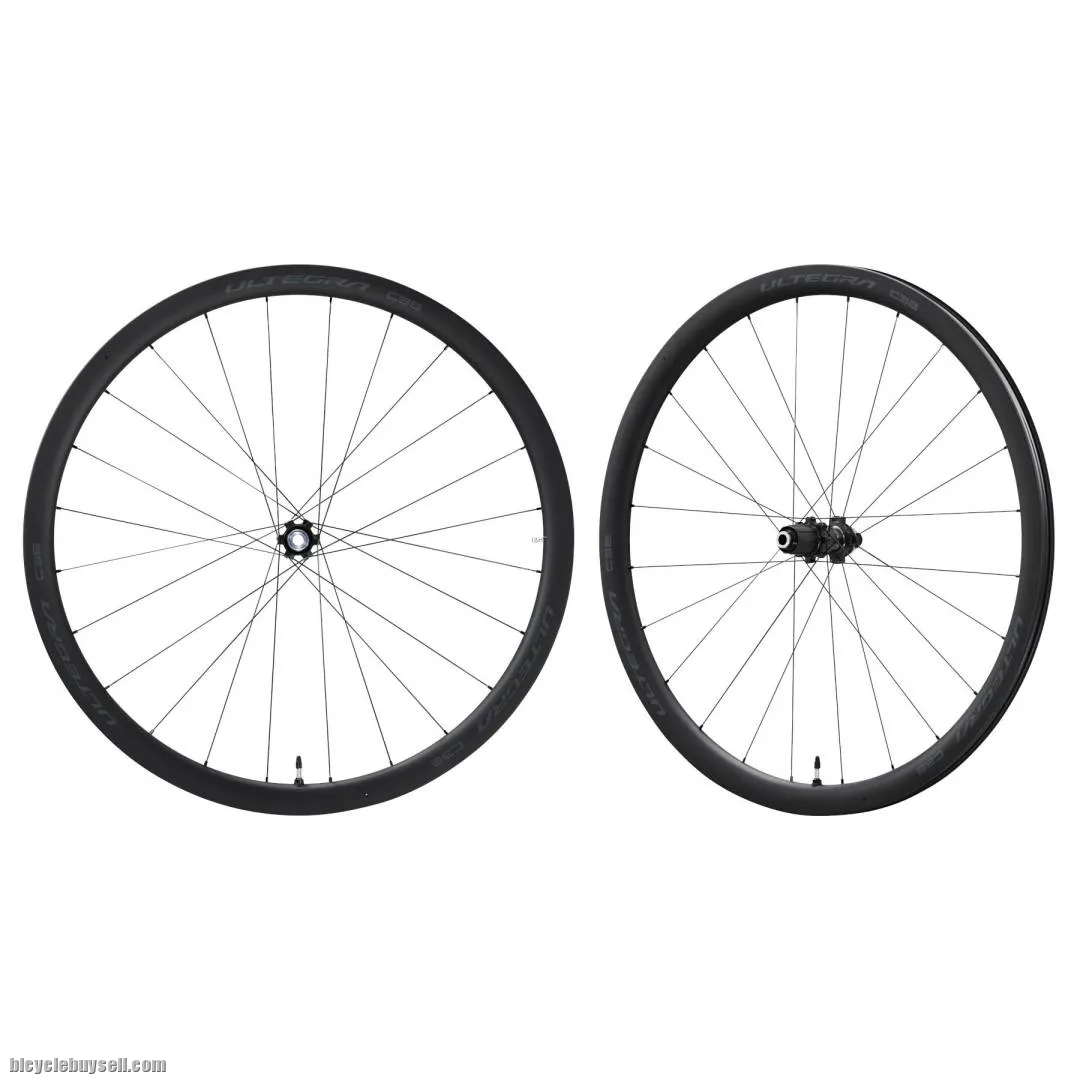

Shimano Ultegra WH-R8170 wheelset
With the current range, full carbon rims have also made their debut on the wheels of the Ultegra series. As with the Dura Ace counterparts, the balanced relationship between three factors was at the forefront of the development: aerodynamics, stiffness and lower weight.
The Tubeless design of the WH-R8170 wheels not only ensures the appropriate propulsion and efficient power development, but also guarantees reliable performance in daily use. Compatibility with the proven 11-speed as well as the new 12-speed road cassettes is just as practical as comfortable.
C36 rim profile – Low weight for the steepest climbs
Not only the low overall weight, but also the weight distribution make the WH-R8170-C36 wheelset the right choice for the mountain stage. Where possible, the C36 rim design saves mass to allow for excellent acceleration and a dynamic feel on the climbs as well as in the corners.
The 36 mm high profile not only impresses with its low weight, but also scores with good aerodynamic properties which it owes not least to the sophisticated D2 rim design. The new wheel generation not only shines with reduced air resistance, but also offers technical refinements. The OPTBAL system, for example, uses a 2:1 spoke ratio to further improve the stiffness of the rear wheel.
D2 rim design
Aerodynamic performance is affected by wind direction. When developing the D2 rim profile, Shimano's engineers took both headwind and crosswind into account to ensure optimum performance under real-world riding conditions.
Extensive prototype testing in the wind tunnel and on the road has shown that a wide rim shape and deep rim well offer the best performance under a wide range of conditions. At yaw angles from 0 to 15 degrees, the D2 rim design reduces drag better than other aerodynamic rims. It also increases the wheel's lateral stiffness and improves vertical directional stability, resulting in more control, comfort and durability on the road.
OPTBAL
Wheels with the OPTBAL system use a 2:1 spoke ratio, resulting in twice as many spokes on the drivetrain side as on the opposite side. The technology counteracts the unbalanced tension caused by increasing cassette widths, especially on the right side. The OPTBAL construction balances out this spoke tension increasing the spokes' lifetime and improving the stiffness of the entire wheel as well.
Technical details of the WH-R9270-C36-TL wheelset
tyre type: clincher, folding tyre, Tubeless
cross-section: symmetrical

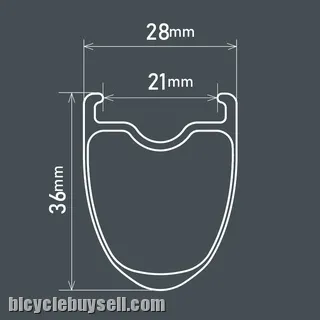

external width: 28 mm / internal width: 21 mm
profile height: 36 mm
brake disc mount: Centerlock

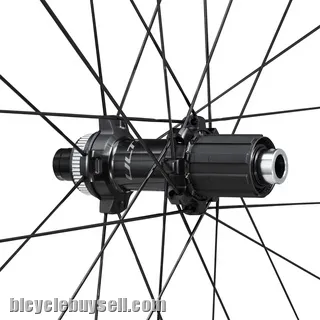

freewheel body: Shimano HG L / EV (11/12-speed)
freehub type: Pawl

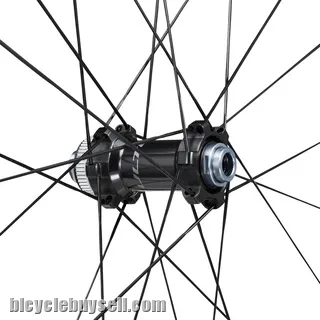

bearing: cup and cone (polished, CBN coated)
seals: contact sealings
O.L.D.: 12 x 100 mm / 12 x 142 mm (thru axle)
aero spokes (Straightpull, double butted, bladed)
spoke count: 24 (front + rear)
front spoke pattern: double crossed
rear spoke pattern: OPTBAL (left radial / right double crossed)
Material:
rims: carbon fiber reinforced polymer (CFRP, painted)
hubs, axles, quick releases: aluminium (anodised)
spokes: stainless steel
nipples: aluminium
Compatibility:
cassette: CS-R9200-12, CS-R8100-12, CS-R8000-11, CS-HG800-11
Weight (manufacturer's specs):
approx. 1488 grams (wheelset)
approx. 657 grams (front wheel)
approx. 831 grams (rear wheel)
FACT SHEET OF SHIMANO ULTEGRA WH-R8170-C36-TL WHEELSET - TUBELESS - CENTERLOCK - 12X100 / 12X142 MM - HG L / EV | 11/12-SPEED
Product Name: Shimano Ultegra WH-R8170-C36-TL Wheelset - Tubeless - Centerlock - 12x100 / 12x142 mm - HG L / EV | 11/12-speed
Manufacturer: Shimano Parts
Item Code: SHI549926
activity: Cycling
material: Aluminium, Carbon coated
usage bikesport: Road Bike
spokes: Straightpull / 2.0 - 1.6 - 2.0 mm
shifting system: 10-speed, 11-speed, 12-speed
wheel size: 28" (29") (622mm)
axle standard: 12x100mm (FW), 12x142mm (RW)
Wheel / Hub version: Wheelset, Wheelset 1300-1700g, Standard Wheel
Freehub: Shimano HG-EV / L
braking system: Centerlock/AFS
tire type: Wire Bead Tire, Folding Tire, Tubeless Ready
spoke hole number: 24
ETRTO: 21-622
rim width: 28mm
inner profile width: 21mm
rim profile height: 36mm
freehub system: Pawl
smallest sprocket: 11
Model year: 2022
Color: Black
weight: 1488g
manufacturer item code: EWHR8170C36LFERED
Number of Spoke Holes: 24
Manufacturer page: http://www.shimano-europe.com/
