RENTHAL APEX STEM 35MM(DIAMETER CLAMP),OFFSET 30MM,40MM All Mountain, Enduro ,And XC

Description

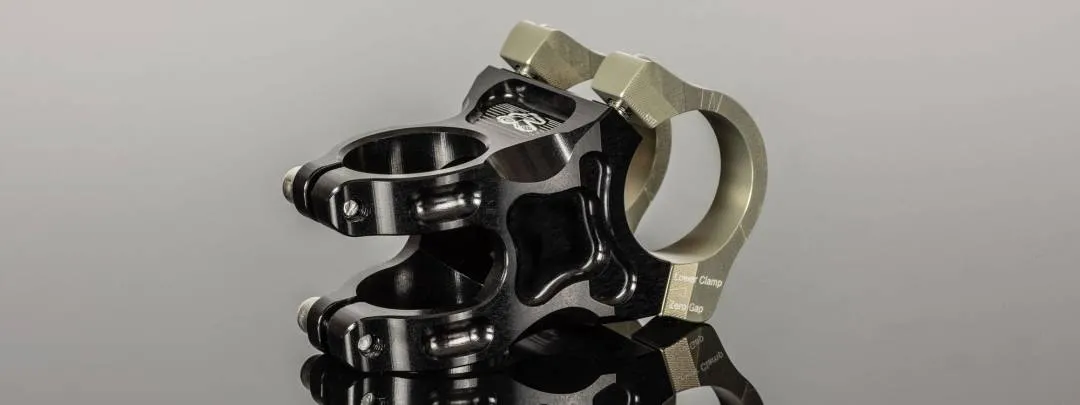

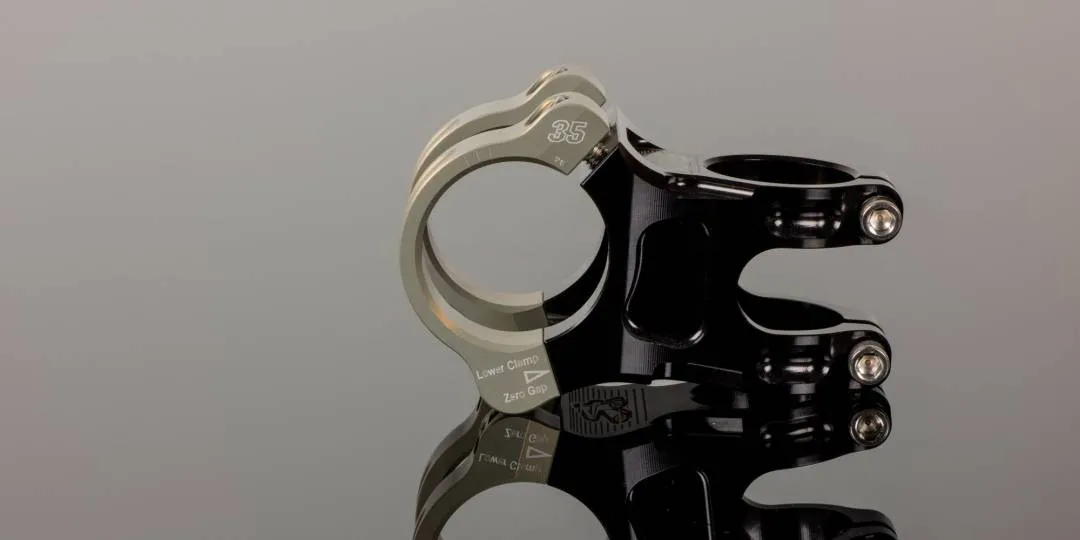

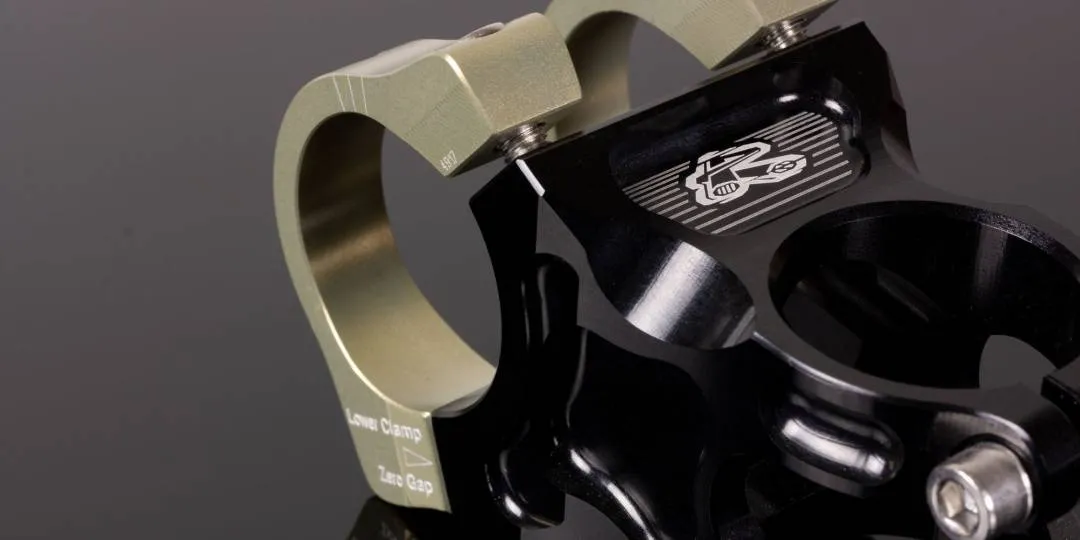

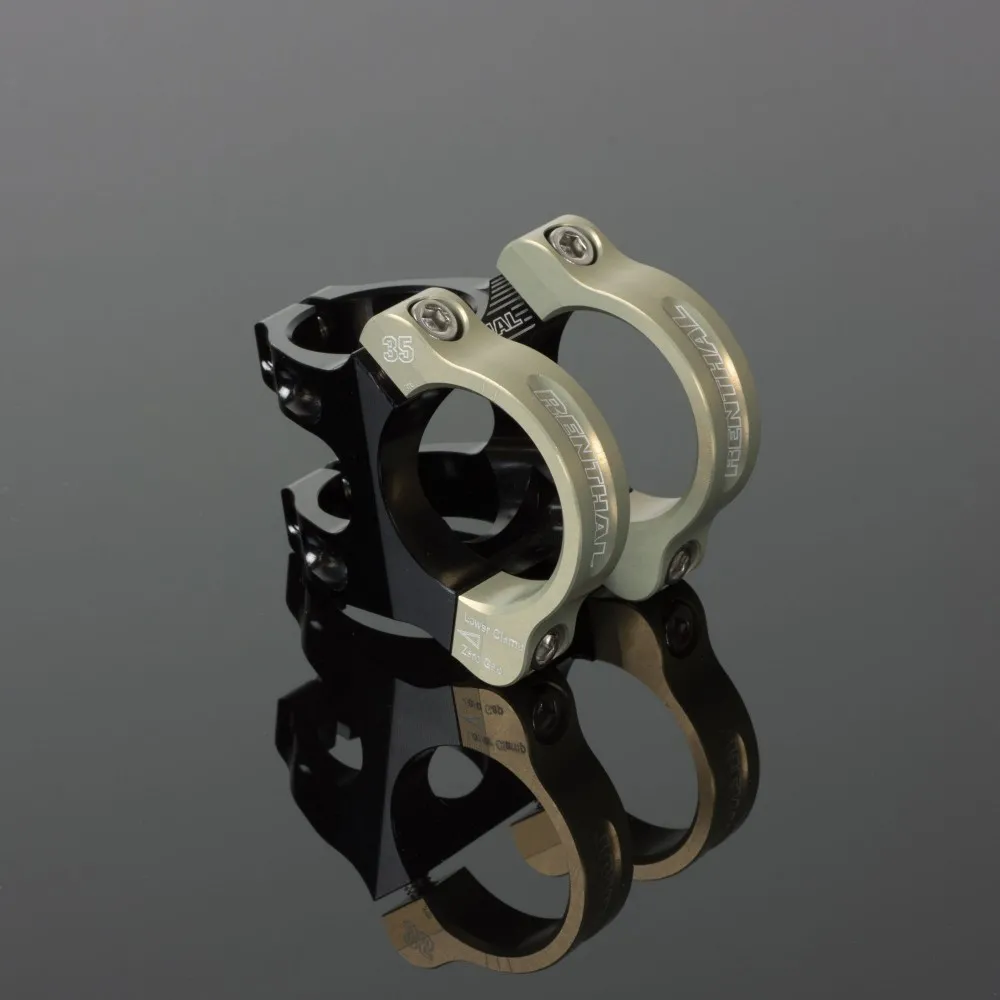

The Renthal Apex combines All Mountain strength, Enduro stiffness and XC lightweight. Unique 240° handlebar clamps allow much of the stem body material to be removed, whilst retaining the strength and stiffness demanded by modern, wide handlebars. The Apex is fully CNC machined, featuring an oversize centre bore, extensive 3-D machining and external webbing to maximise structural strength and stiffness and minimise weight. CNC Machined: The Renthal Apex 35 is CNC machined from a solid billet of 2014 aluminium with 7075 aluminium clamps. These materials were specifically chosen for this application, to give the highest strength to weight ratio. Zero Gap: The Apex 35 handlebar clamping system features a zero-gap at the underside of the handlebar. This gives superior support for the handlebar and ensures accurate bolt torque. Oversize Centre Bore: The unique handlebar clamping system opens up the front of the stem, allowing an oversize centre bore, to increase stiffness and strength. 240 degree clamps: The clamps are inserted over the small diameter section of the handlebar and slid into the centre, giving a 240 degree wrap of the handlebar. +/- 6 Degree Angle: The stem body can be flipped to give either a plus 6 degree or minus 6 degree rise. This allows the correct bar height to be achieved with any wheel size or head tube length. High Quality Finish: After CNC machining, the stem components are anodised and laser marked to give a very high quality and durable finish. Apex35 33mm Product Code: STM117-BKAG Stem Specification Offset 33mm Rise + / - 6° Stack Height 40mm Clamping Diameter 35mm Clamp Width 46mm Steerer Clamp 28.6mm Weight 112g (inc. bolts) Apex35 40mm Product Code: STM118-BKAG Stem Specification Offset 40mm Rise +/- 6° Stack Height 40mm Clamping Diameter 35mm Clamp Width 46mm Steerer Clamp 28.6mm Weight 122g (inc. bolts) CONTACT JEFF 0124442268 NO 7 JLN EQUINE 9A TMN EQUINE PARK SERI KEMBANGAN SELANGOR <Whatsapp>https://api.whatsapp.com/send?phone=60124442268
