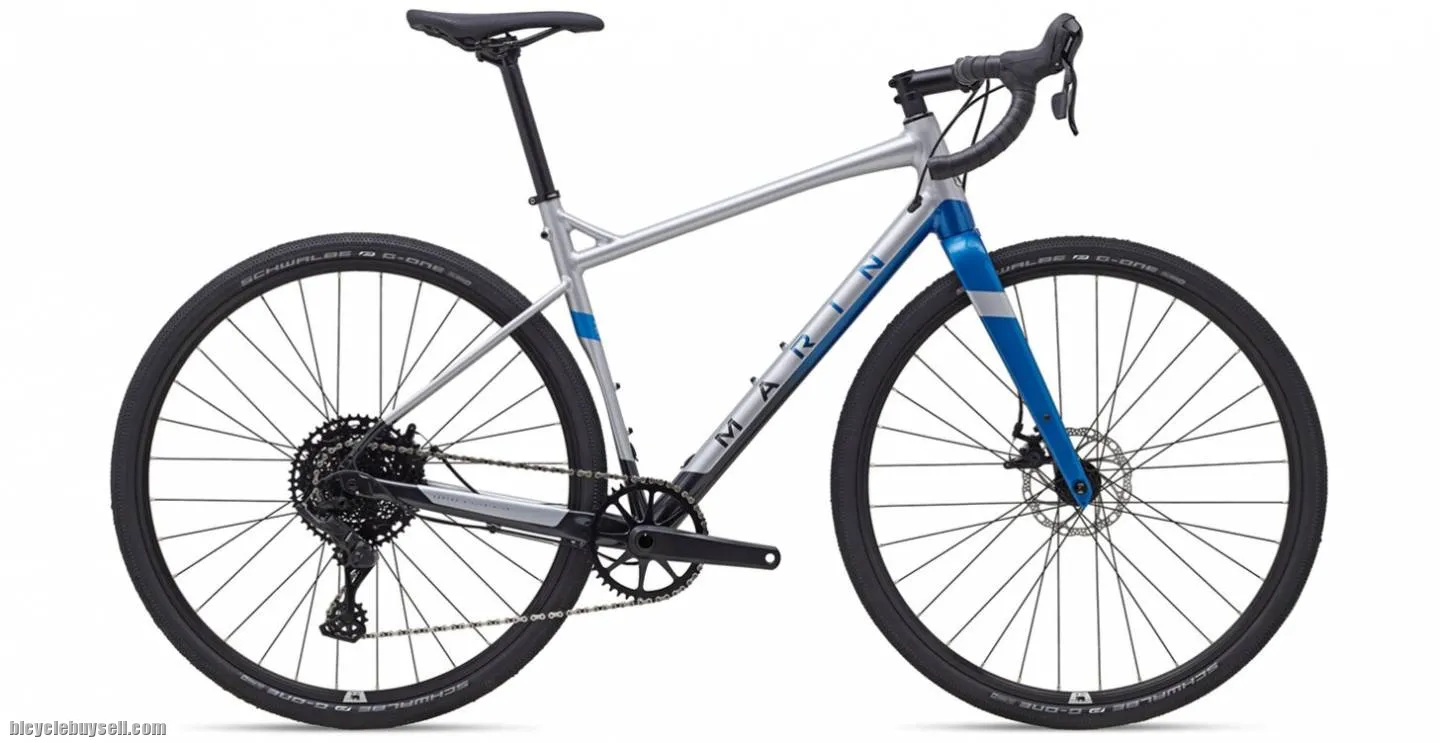

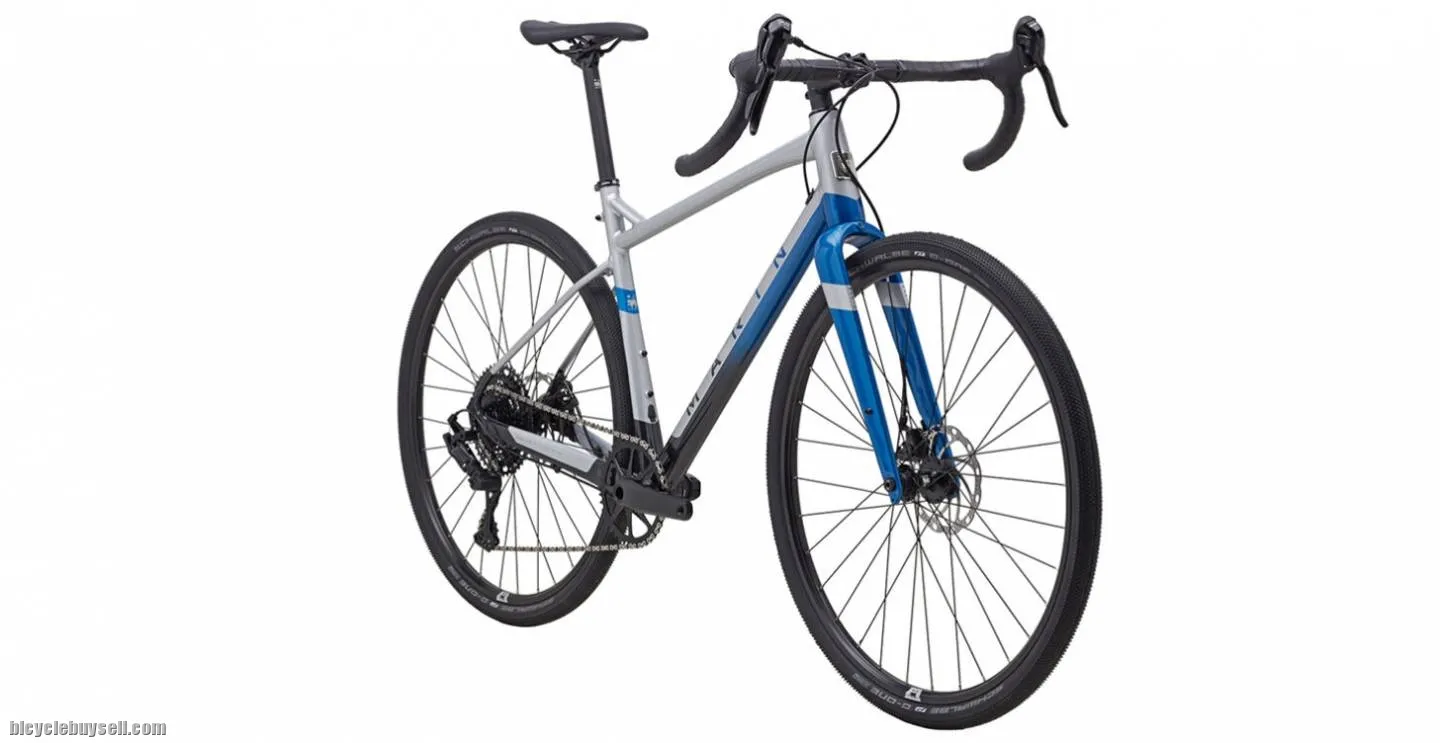

Marin Gestalt X10 Gravel Bike

Description

AADVENTURE ON AND OFF-ROAD RIDING

LONG DISTANCE COMMUTING

GRAVEL RIDING

The Gestalt X is the mountain biker’s dropbar bike with reliable and simple 1x drivetrains, large tire clearance, and dropper post routing for better off road control, and on road descending stability.

FRAME
Series 3 Beyond Road, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle

FORK
Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets

RIMS
Marin Aluminum Double Wall, 19mm Inner, 24mm Tall, Disc Specific

HUB, REAR
Forged Aluminum Alloy, 32H

HUB, FRONT
Forged Aluminum Alloy, 32H

SPOKE, NIPPLES
14g Black Stainless Steel

TIRES
Schwalbe G-One Performance, 700Cx40mm, Folding Bead

DERAILLEUR, REAR
MicroSHIFT Advent X 10-Speed Wide-Range

DERAILLEUR, FRONT
-

SHIFT LEVER
MicroSHIFT Advent X 10-Speed

CRANKSET
Forged Alloy 1x10, Hollow CrMo Spindle, Narrow Wide 42T

BOTTOM BRACKET
External Sealed Cartridge Bearings

CHAIN
KMC X10

CASSETTE
SunRace 10-Speed, 11-51T

BRAKE, FRONT
Tektro MD-C500 Dual Piston Road Mechanical Disc, 160mm Rotor

BRAKE, REAR
Tektro MD-C500 Dual Piston Road Mechanical Disc, 160mm Rotor

BRAKE LEVERS
MicroSHIFT Advent X

HANDLEBAR
Marin Butted Alloy, Compact 16º Flared Drop

STEM
Marin 3D Forged Alloy

GRIPS
Marin Shock Absorbing Perforated Tape

HEADSET
FSA Orbit IS, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”

SEATPOST
Marin Alloy, 27.2mm

SADDLE
Marin Beyond Road Concept

PEDALS
-

EXTRAS
Bolt-On Thru-Axles F and R

Specifications, pricing, and availability are subject to change without notice.

Size available: 50 (152cm - 160cm)
