ONEUP COMPONENTS - Dropper Post Remote

Description

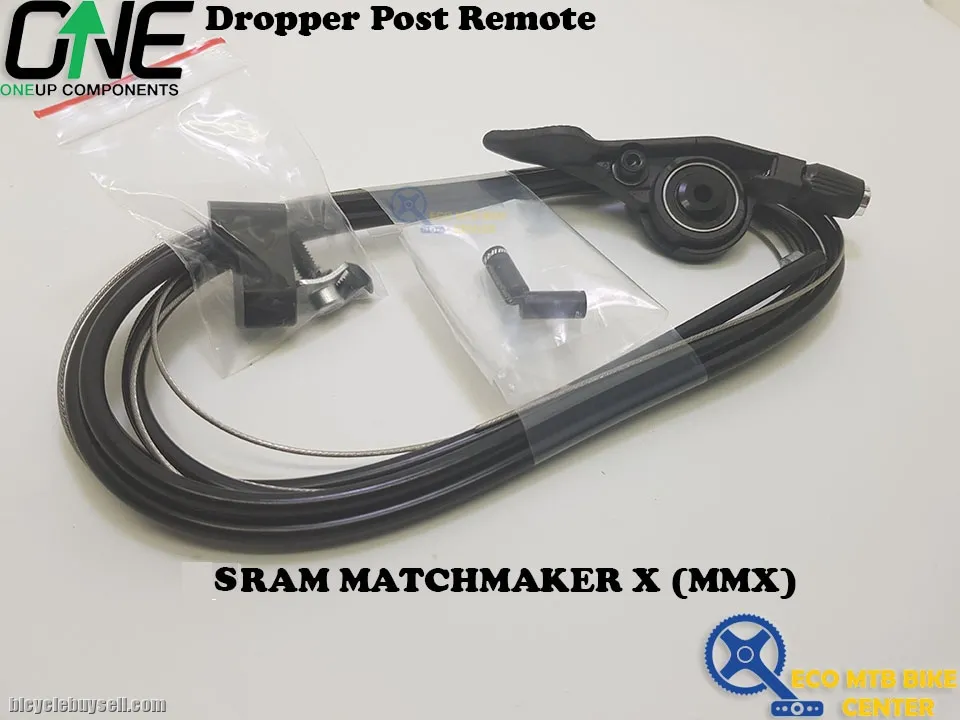

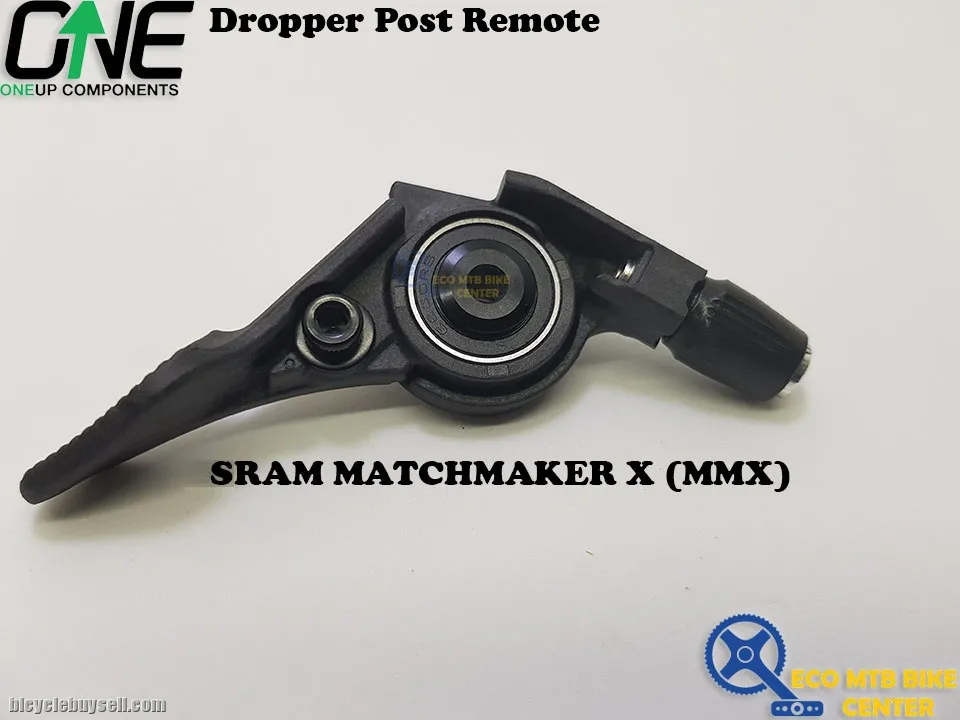

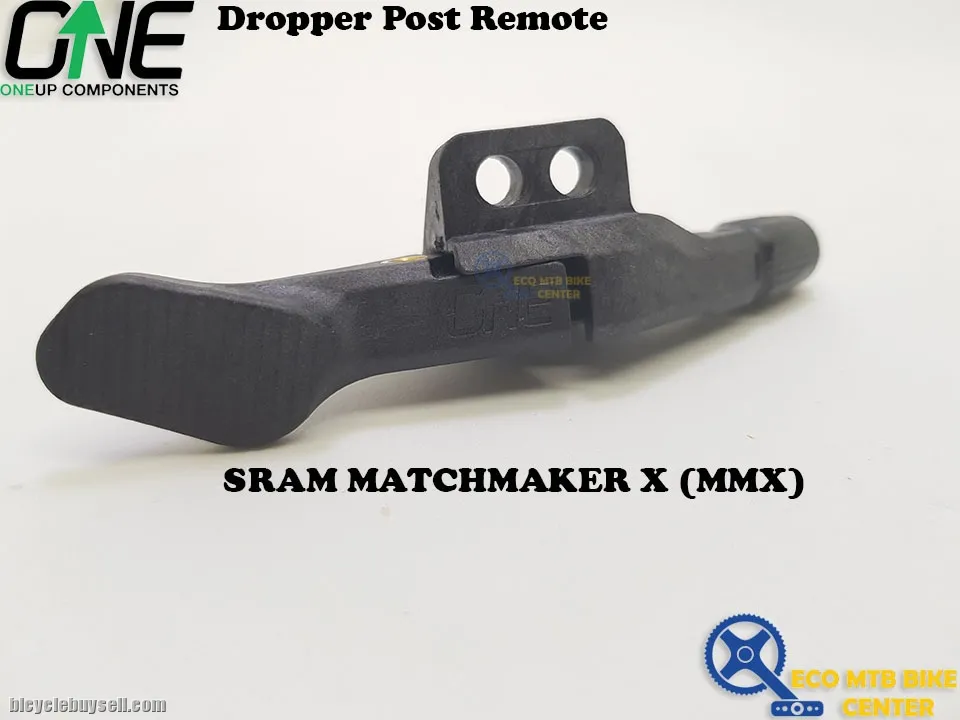

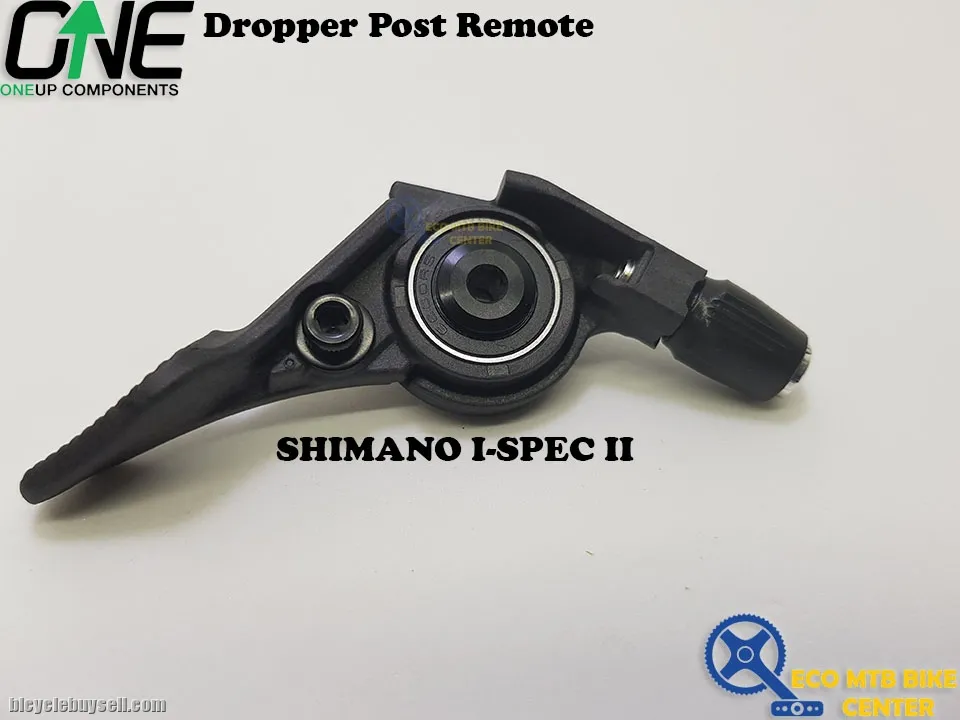

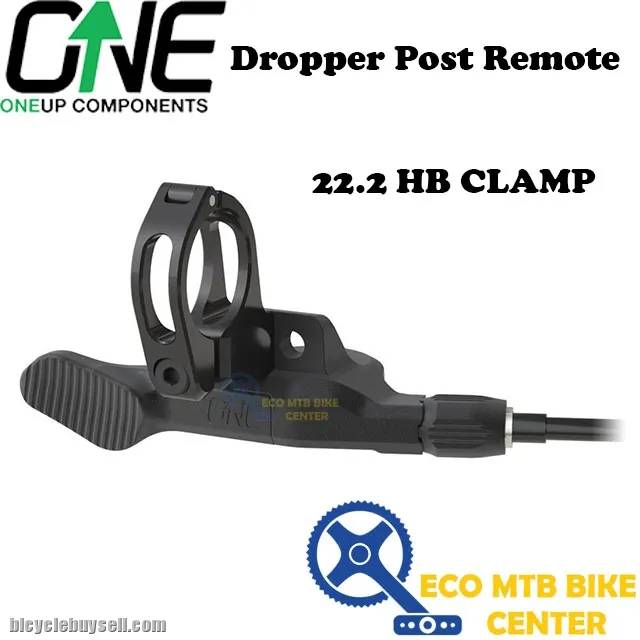

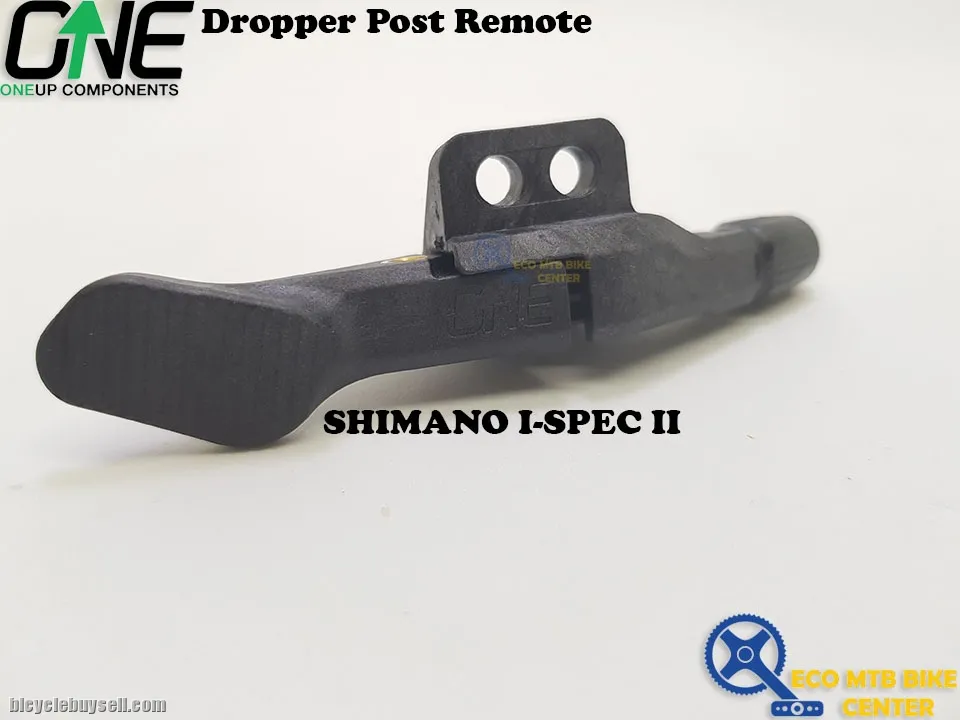

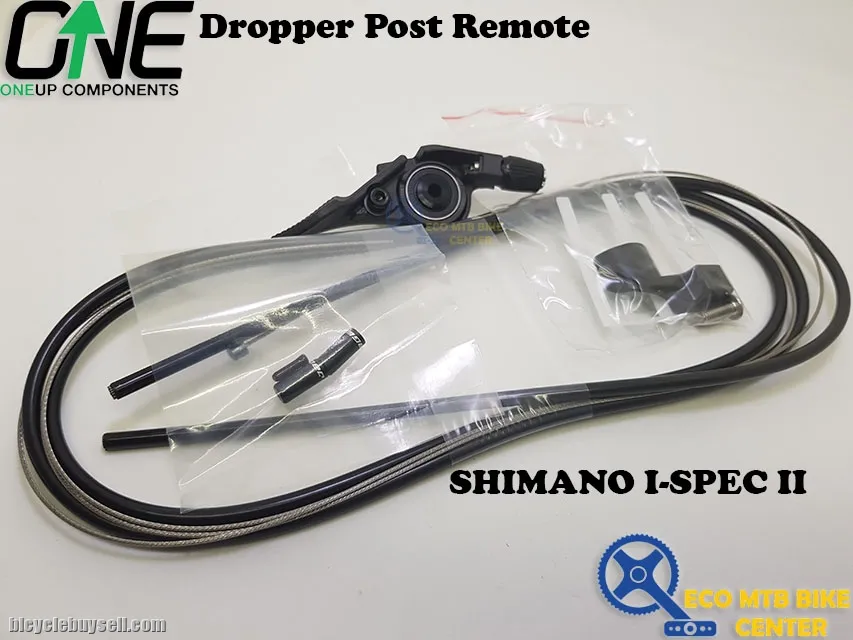

A BETTER REMOTE FOR ANY CABLE OPERATED DROPPER A carbon remote with an oversized bearing and a super smooth action. The unique lever position allows you to keep a stronger grip on the bars while actuating your post. Don't think twice about dropping your post, even when charging into technical sections. The OneUp lever mimics your R/H shifter’s inboard upshift paddle position instead of the usual downshift paddle position of most remotes. This position requires considerably less thumb movement to reach the lever. NO BLEEDING ~ The cable setup is quick and easy. The cable clamps at the lever making shortening the housing length for clean routing a breeze. Unlike a hydraulically actuated dropper, there is no temperature sensitivity and If your remote gets damaged you can still lower or extend your post by removing it from your frame and pushing on the actuator by hand. ~ Kit includes cable, housing and 1 dropper shim. ~ Compatible with all cable actuated dropper posts. SPECS - Weight: 32g I-Spec II, 35g MMX, 39g bar clamp INSTALL INSTRUCTIONS 22.2mm Clamp ~ Loosely attach the hinged clamp to your handlebar (Left side of brake for SRAM, Right side of brake for Shimano) ~ Attach the remote body to the clamp using your preferred mounting hole. ~ Torque the remote body to the clamp using a 3mm hex to 3Nm ~ Loosen the 22.2mm clamp and rotate the OneUp dropper remote until the remote body is parallel to the brake lever ~ Snug the 22.2mm clamp to 1Nm max. Shimano I-spec II ~ Remove the lever mounting bolt completely from the left brake using a 4mm hex ~ Depress the "Push to Open" button using a 2mm hex to fully open the brake lever clamp ~ Remove the plastic spacer from the inside of the lever clamp ~ Install the OneUp I-spec II adapter into the lever clamp ~ Loosely reinstall the brake lever clamp onto the handlebar ~ Attach the remote body to the I-spec II adapter using your preferred mounting hole. ~ Torque the remote body to the I-spec II adapter using a 3mm hex to 3Nm ~ Rotate the OneUp dropper remote until the remote body is parallel to the brake lever. ~ Torque the brake lever clamp to the manufacturer's recommendation SRAM Matchmaker X ~ Remove Brake lever mounting screw and hinged clamp using a T25 Torx ~ Install the OneUp supplied T-nut into the curved recess on the hinged clamp ~ Loosely reinstall the brake lever clamp onto the handlebar ~ Install the OneUp supplied Matchmaker X adapter onto the T-nut ~ Attach the remote body to the Matchmaker X adapter using your preferred mounting hole. ~ Torque the remote body to the Matchmaker X adapter using a 3mm hex to 3Nm ~ Rotate the OneUp dropper remote until the remote body is parallel to the brake lever. ~ Torque the brake lever clamp to the manufacturer's recommendation Please visit our website at http://www.ecomtb.com.my OR https://shopee.com.my/eco_mtb ** There is 1-3cm errors due to manual measurement. Please kindly understand. ** Actual product colour may slightly vary due to photographic lighting sources or your monitor settings. ** WE DO NOT DO COD ** ONLINE ONLY ** We support original products only. ** PRICE INDICATED IS ALREADY BEST PRICE, EXCLUDE COURIER
