BIG ALL-MOUNTAIN DAYS WHERE TRAVEL AND GEOMETRY MATTER MOST
BUILT FOR ABUSE AND ROWDY RIDING
ENDURO-STYLE RIDING AND RACING
BIG BIKE, BIG WHEELS, BIG FUN

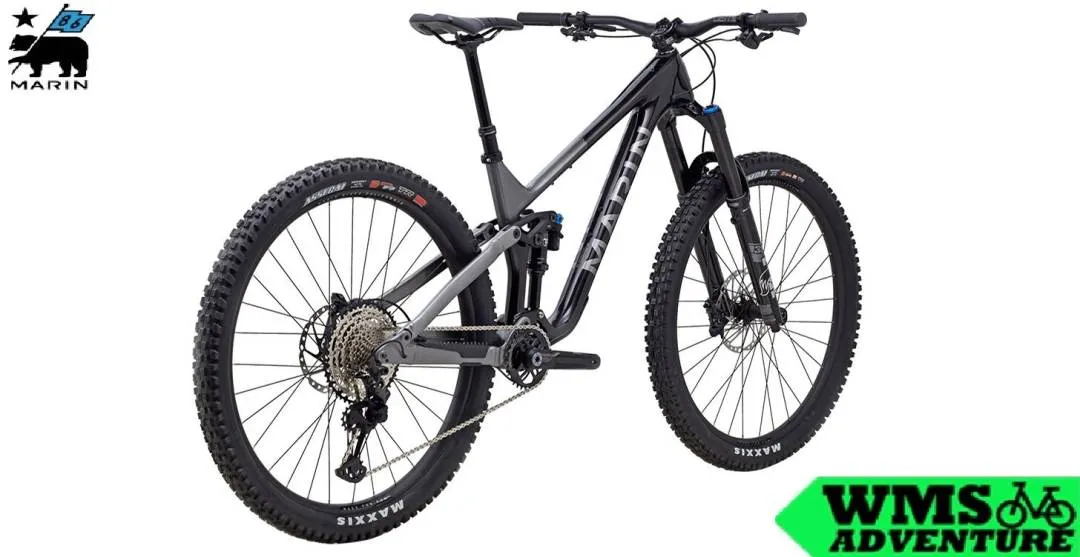

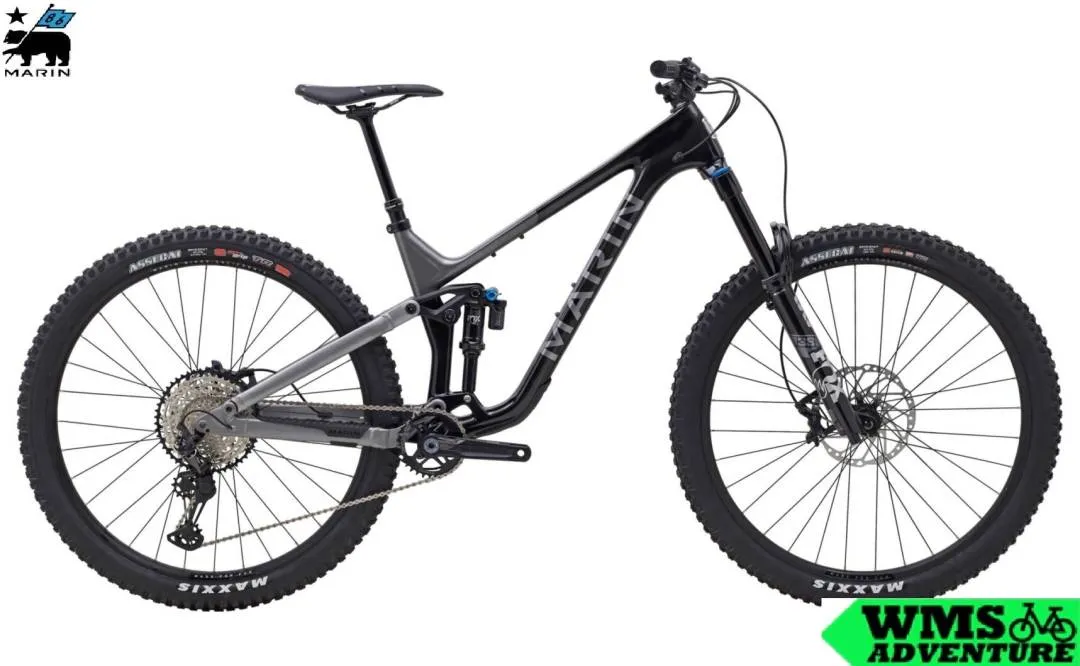

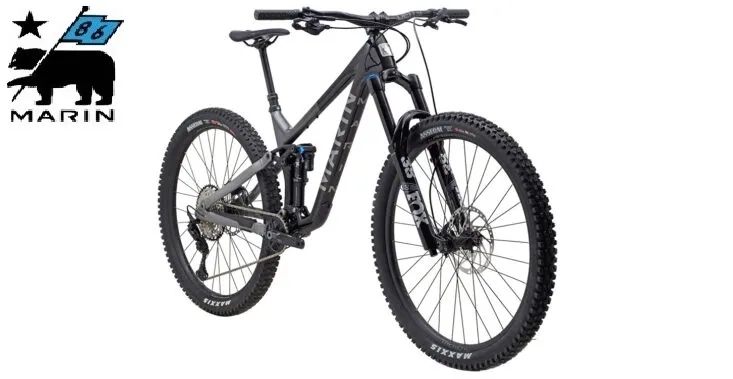

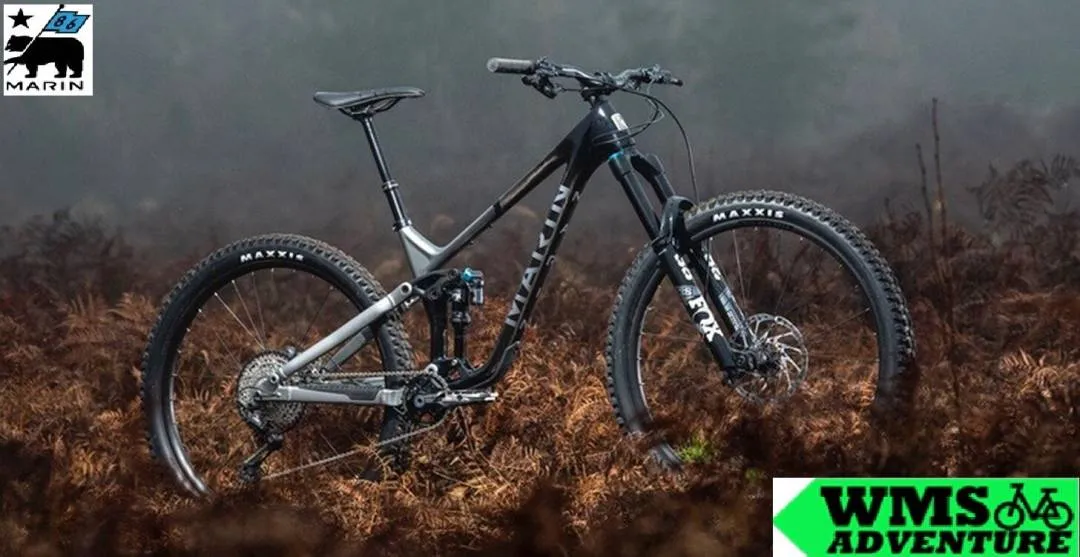

The Alpine Trail is a 29” wheeled full suspension bike built for the all day enduro rider that earns their downhill fun.

SPECIFICATIONS:

FRAME
Unidirectional Carbon Fiber Front Triangle, Series 4 Alloy Rear End, 29” Wheels, 150mm Travel MultiTrac Suspension Platform, Internal Dropper Post and Rear Derailleur Routing, Chainstay Mounted Post Mount Disc Brake, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs

FORK
Fox 38 Performance Elite, 160mm Travel, 29" , 110x15mm Boost Kabolt Thru-Axle, 44mm Offset, Integrated Fox Fender

REAR SHOCK
Fox Float X, Performance, EVOL Air Spring, 3 Position Compression Adjustment, Rebound Adjustment, 205x65mm, Trunnion Upper Mount, 25mmxM8 Lower Mount

RIMS
Marin, Double Wall Alloy, 29mm Inner, Welded Joint, Disc Specific, 32H, Tubeless Compatible

HUB REAR
Shimano HB-MT510B, 148x12mm, Disc, Microspline Freehub Body

HUB FRONT
Shimano HF-MT410B, 110x15mm, Disc

SPOKE
14g Black Stainless Steel

TIRES
Front: Maxxis Assegai 29x2.5”, MaxxTerra, EXO+, Tubeless Compatible; Rear: Maxxis Assegai 29x2.5”, MAXX GRIP, DoubleDown, Tubeless Compatible

DERAILLEUR REAR
Shimano XT 12-Speed, SGS

DERAILLEUR FRONT
-

SHIFT LEVER
Shimano SLX 12-Speed, I-Spec EV

CRANKSET
FSA Gradient, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Mego EXO Spindle, Boost Spacing

BOTTOM BRACKET
MEGAEVO BB, 73mm BSA Threaded

CHAIN
KMC X-12 Silver and Black

CASSETTE
Shimano SLX M7100 Cassette, 12-Speed, 10-51T

BRAKE FRONT
Shimano SLX, 4-Piston Hydraulic Disc Brake, 203mm Rotor

BRAKE REAR
Shimano SLX, 4-Piston Hydraulic Disc Brake, 180mm Rotor

BRAKE LEVERS
Shimano SLX Hydraulic, I-Spec EV

HANDLEBAR
Race Face Affect R 35, 35mm Clamp, 780mm Width, 20mm Rise, 5º Up, 8º Back

STEM
Race Face Affect R 35, 50mm Length

GRIPS
Marin Single Clamp Locking

HEADSET
FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”

SEATPOST
X-Fusion Manic, 1x Shimano I-Spec EV Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 170mm Travel, 30.9mm

SADDLE
Marin Trail Speed Concept Pro

PEDALS
-

EXTRAS
Bolt-On Thru-Axle

Size: M

Specifications, pricing, and availability are subject to change without notice.
