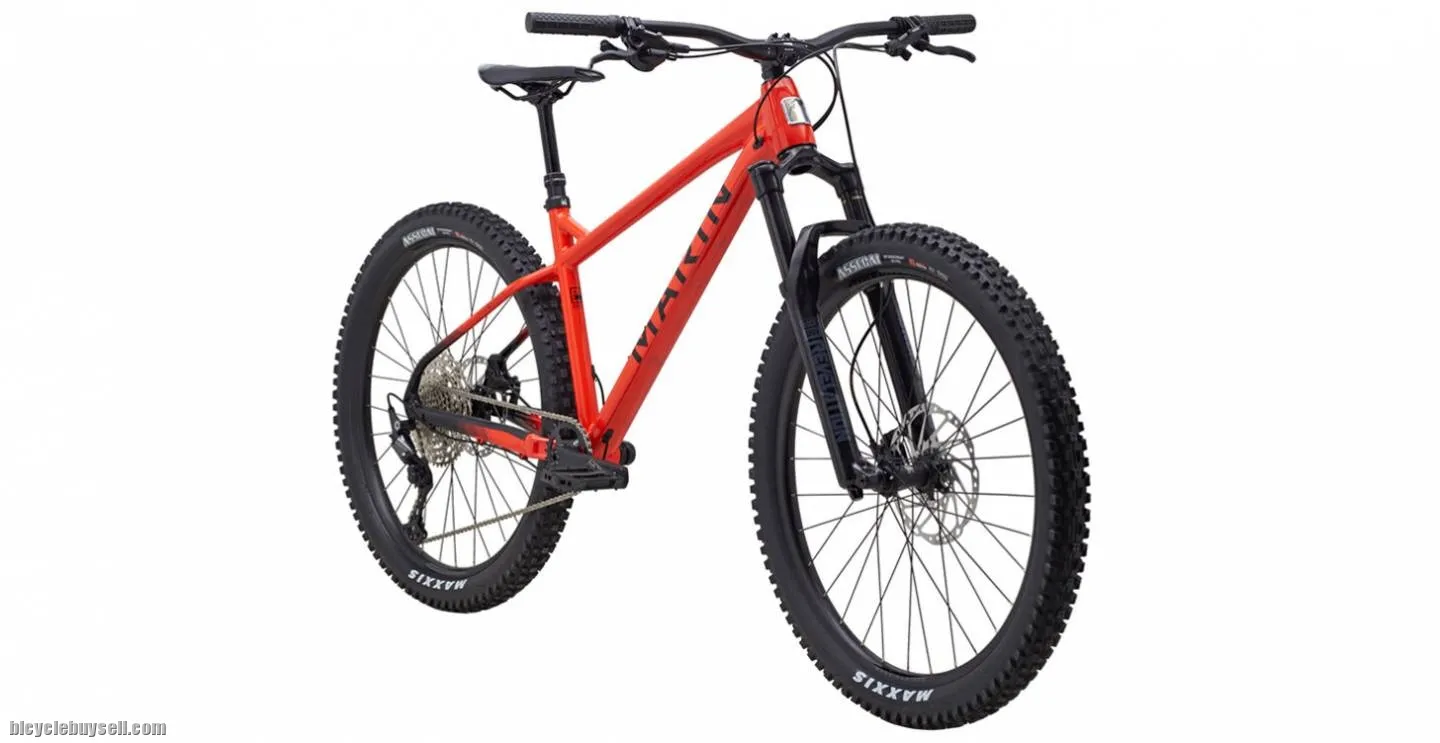

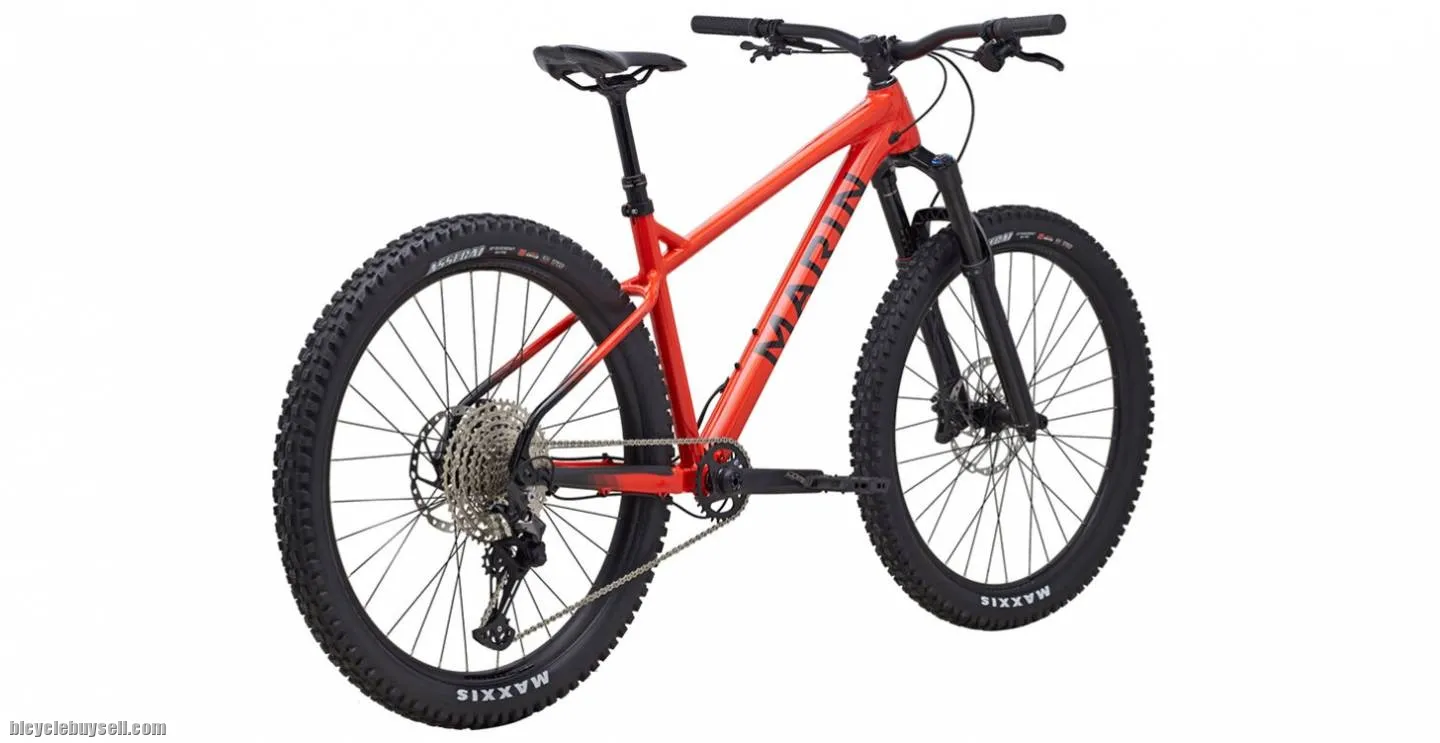

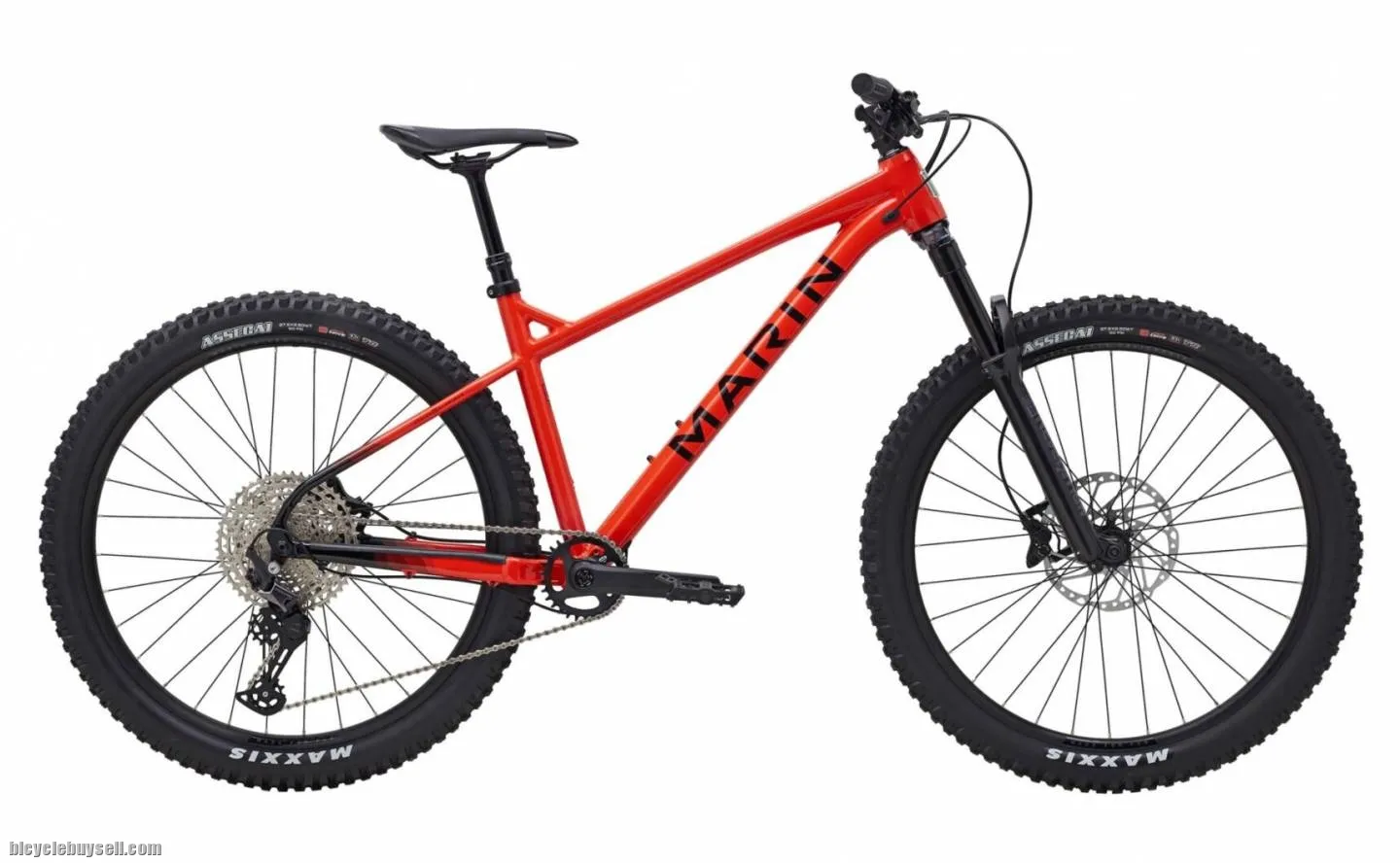

The San Quentin is for the aggressive hardtail trail rider looking for a blend between singletrack capabilities and extended air time.

SPECIFICATIONS
FRAME
Series 3 6061 Aluminum, Double Butted Frame, Internal Shifter and Dropper Post Routing, External Brake, 12x148mm Thru-Axle, 73mm Threaded BB

FRONT SUSPENSION
RockShox Revelation RC, 110x15mm Boost Spacing, Fast Black Stanchions, 130mm Travel, Bolt-On Thru-Axle

RIMS
Marin Aluminum Double Wall, 29mm Inner, Sleeved Joint, Disc Specific, 32H, Tubeless Compatible

HUB, REAR
Shimano HB-MT410B, 148x12mm, Centerlock, Microspline Freehub Body

HUB, FRONT
Shimano HF-MT410B, 110x15mm, Centerlock

SPOKE, NIPPLES
14g Black Stainless Steel

TIRES
Maxxis Assegai, 27.5x2.5", 3C MAXX TERRA, EXO, Tubeless Compatible

DERAILLEUR, REAR
Shimano Deore, 12-Speed, SGS

DERAILLEUR, FRONT
-
SHIFT LEVER
Shimano Deore, 12-Speed, SL-7100R

CRANKSET
FSA Comet, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Boost Spacing

BOTTOM BRACKET
Mega EXO 73mm BSA

CHAIN
KMC X-12 Silver and Black

CASSETTE
Shimano, Deore 12-Speed, 10-51T

BRAKE, FRONT
Shimano MT420, 4-Piston Hydraulic Disc Brake, 203mm Rotor

BRAKE, REAR
Shimano MT420, 4-Piston Hydraulic Disc Brake, 180mm Rotor

BRAKE LEVERS
Shimano MT4100 Hydraulic Lever, I-Spec EV Compatible

HANDLEBAR
Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back

STEM
Marin 3D Forged Alloy, 35mm

GRIPS
Marin Single Clamp Locking

HEADSET
FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”

SEATPOST
X-Fusion Manic, 1x Composite Remote, Size S 125mm Travel, All Other Sizes: 150mm Travel, 30.9mm

SADDLE
Marin Speed Concept

PEDALS
Nylon Platform

Stock Available: SIZE: 27.5 (M) (165cm to 173cm)

Specifications, pricing, and availability are subject to change without notice.
