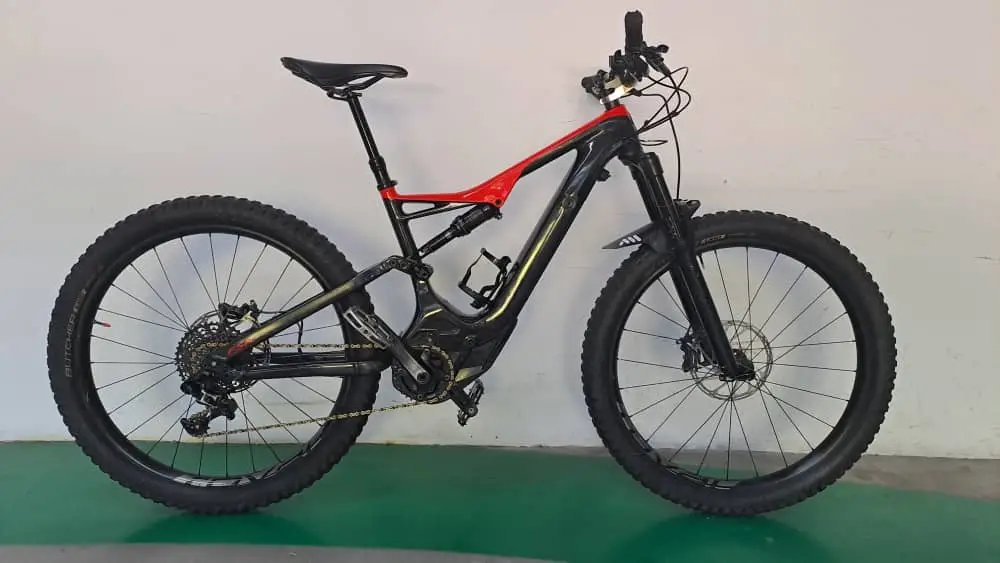

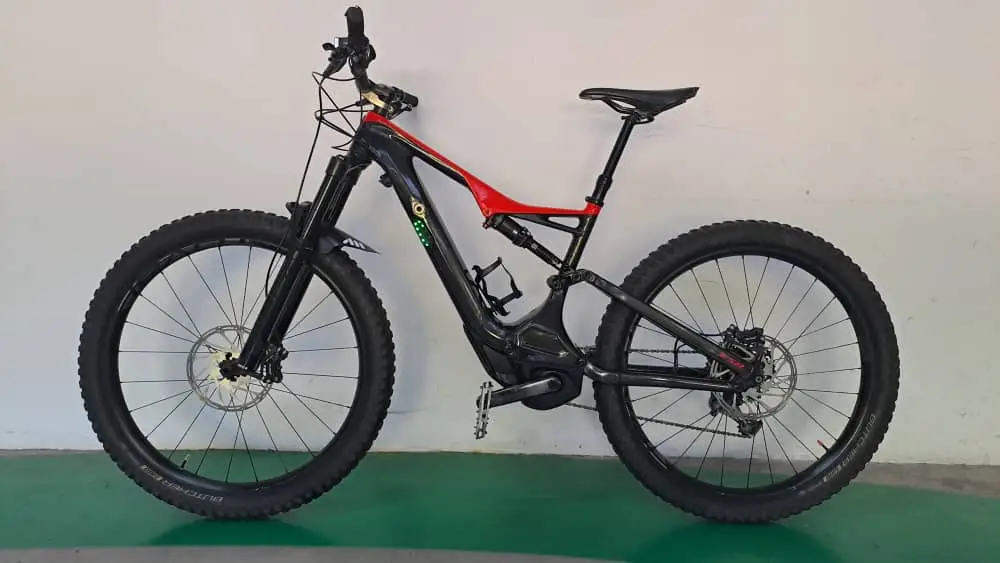

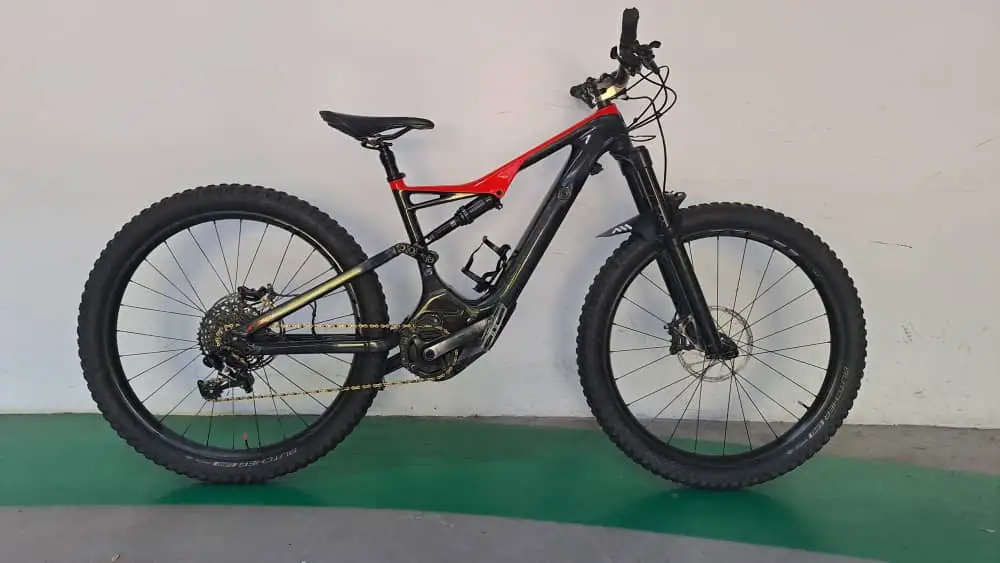

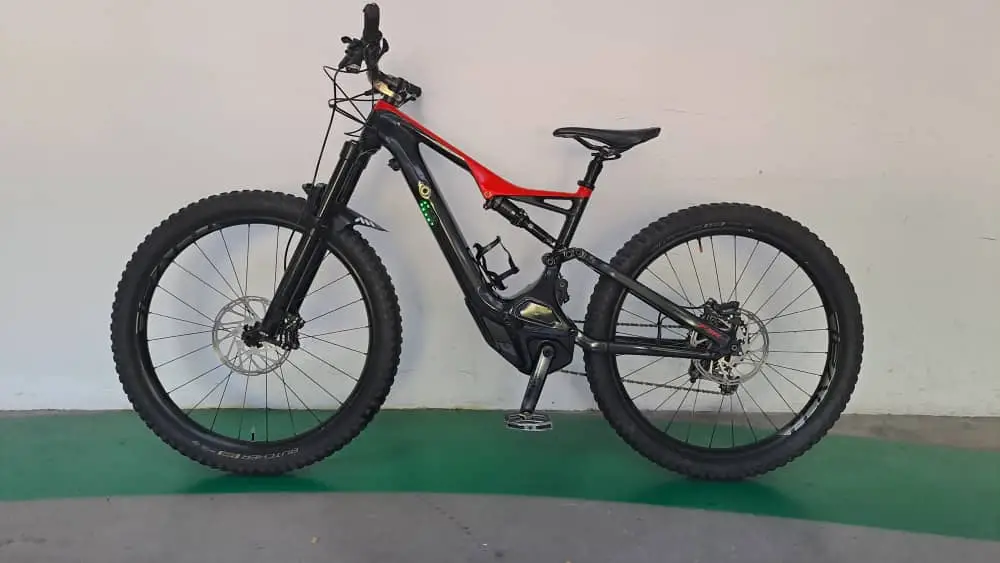

Specialized Turbo Levo FSR Comp Carbon 6 Fattie 2018

Size M

E-bike in top condition.
Motor under 2 years warranty. 500W.
Reason for selling: not allowed to import an e-bike where I am moving to.


The Turbo Levo FSR frame is constructed with a FACT 9m carbon fiber chassis and M5 Premium Aluminum rear end, making it not only lightweight but also quite stiff and responsive. Trail 6Fattie Geometry includes a low bottom bracket, roomy top tube, and short chainstays. Cable routing is all internal, including that of the Command Post IR, while the battery is fully integrated in the down tube and the motor is secured by a forged brace mount.

The custom Turbo 1.3 Rx Trail-tuned motor is built for the Levo and features a 15% power increase and a significant efficiency increase compared to the Turbo 1.2 motor. This successfully places it at the top of e-bike motor technology. It has many other features that no other e-bike can touch, like instant engagement, fantastic heat management, a double freewheel design that disengages the gear box when you hit top speed, and silent, smooth, and consistent output—even at max power.

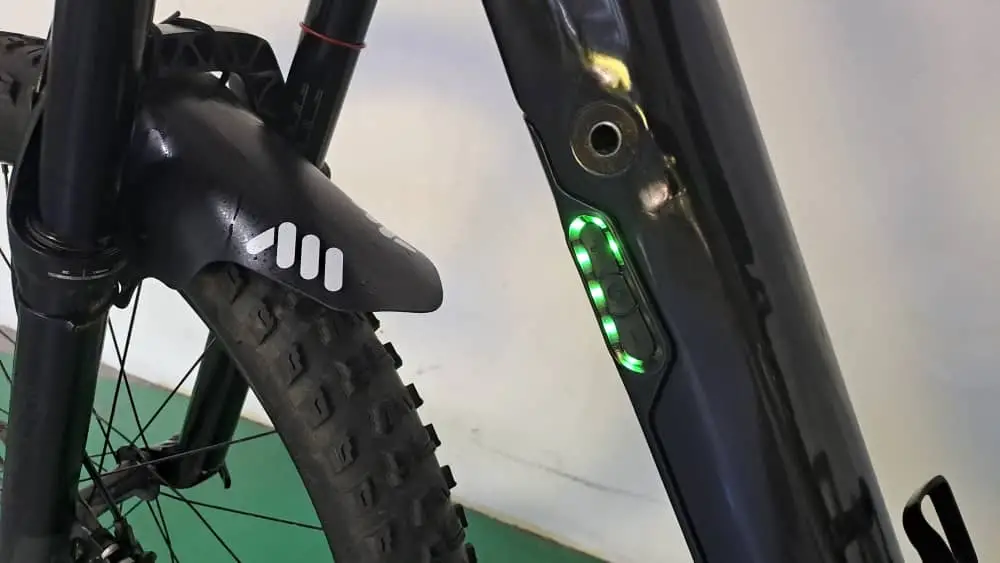

The Turbo M1-504 battery features an integrated Trail Display and ANT+/Bluetooth® module with Mission Control App connectivity. It also houses 504Wh of trail-taming juice, and it's neatly integrated into the down tube.


TECHNICAL SPECS

Frame: FACT 9m carbon chassis / M5 Alloy rear triangle, 6Fattie/29 Trail Geometry, Integrated down tube battery, enclosed internal cable, Command Post IR routing, 148mm spacing, fully sealed cartridge bearings, 135mm of travel

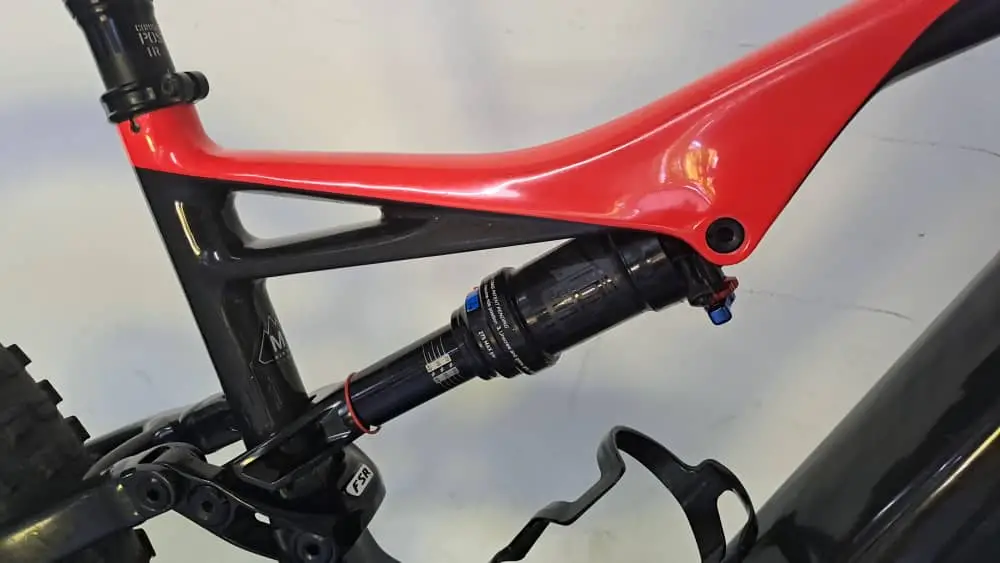

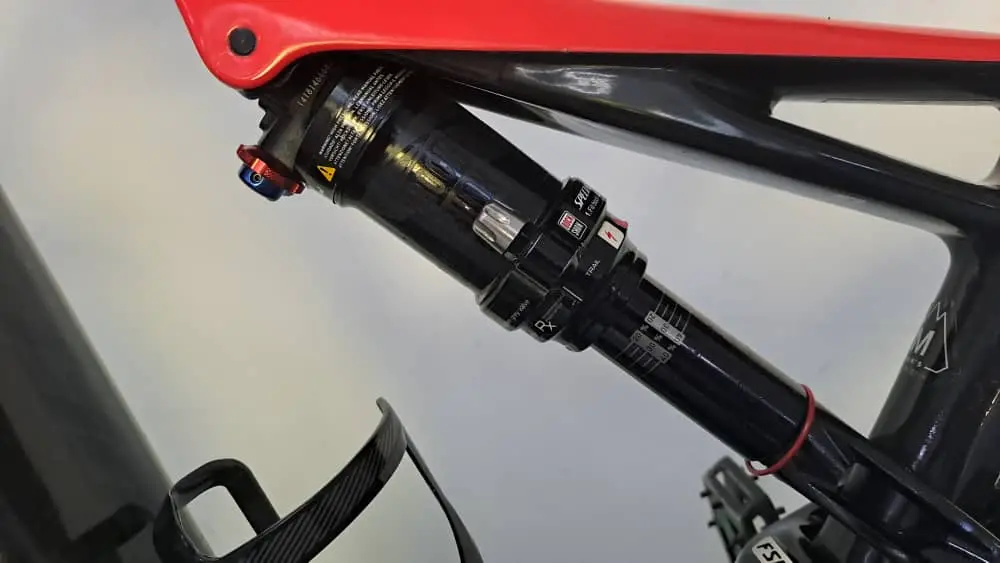

Rear Shock: RockShox Monarch RT, Rx Trail Tune, AUTOSAG, rebound and 2-position compression adjust, 197x48mm

Fork: RockShox Revelation RC 6Fattie/29, 51mm offset, 34mm stanchions, 150mm of travel

Stem: Specialized Trail, 3D forged alloy, 4-bolt, 6-degree rise

Handlebars: Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 27mm rise, 780mm width

Grips: MTB Lock-on CIP Grip SM & MD Thin lock-on / LG & XL Thick MTB lock-on

Front Brake: SRAM Guide RE, hydraulic disc, 200mm

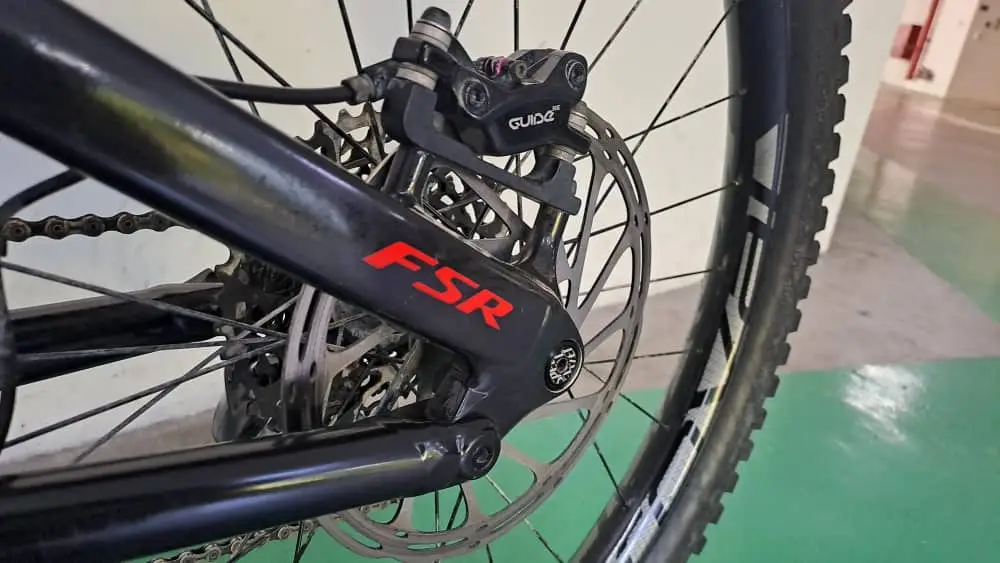

Rear Brake: SRAM Guide RE, hydraulic disc, 200mm

Rear Derailleur: SRAM GX, long cage, 11-speed

Shifters: SRAM GX, one-click shift-lever

Cassette: SRAM PG-1130, 11-speed, 11-42t

Chain: KMC X11ET, 11-speed w/ Missing Link™

Crankset: Custom alloy crankarms

Chainrings: Forged steel, 32T

Rims: Roval 650b, alloy construction, 38mm internal width, 24/28h

Front Hub: Specialized alloy disc, sealed cartridge bearings, 15x110mm, torque caps, 24h

Rear Hub: Specialized alloy disc, sealed cartridge bearings, 12x148mm, 10-/11- speed freehub, 28h

Spokes: DT Swiss, stainless

Front Tyre: Butcher, GRID casing, 2Bliss Ready, 650b x 2.8"

Rear Tyre: Butcher, GRID casing, 2Bliss Ready, 650b x 2.8"

Saddle: Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm

Seatpost: Command Post IRcc, 12-position micro-height adjustable, alien head design, bottom mount cable routing, remote SRL lever, 30.9mm, S: 100mm, M/L/XL: 125mm of travel

Motor: Turbo 1.3, custom Rx Trail-tuned motor
UI/Remote Trail Handlebar Remote, motor mode switch & walk-assist

Battery: Turbo M1-504, integrated Trail Display, ANT+/Bluetooth® module, 504Wh, Mission Control App connectivity

Charger: Custom charger, 42V4A with Rosenberger plug

Wiring Harness: Custom Specialized wiring harness
