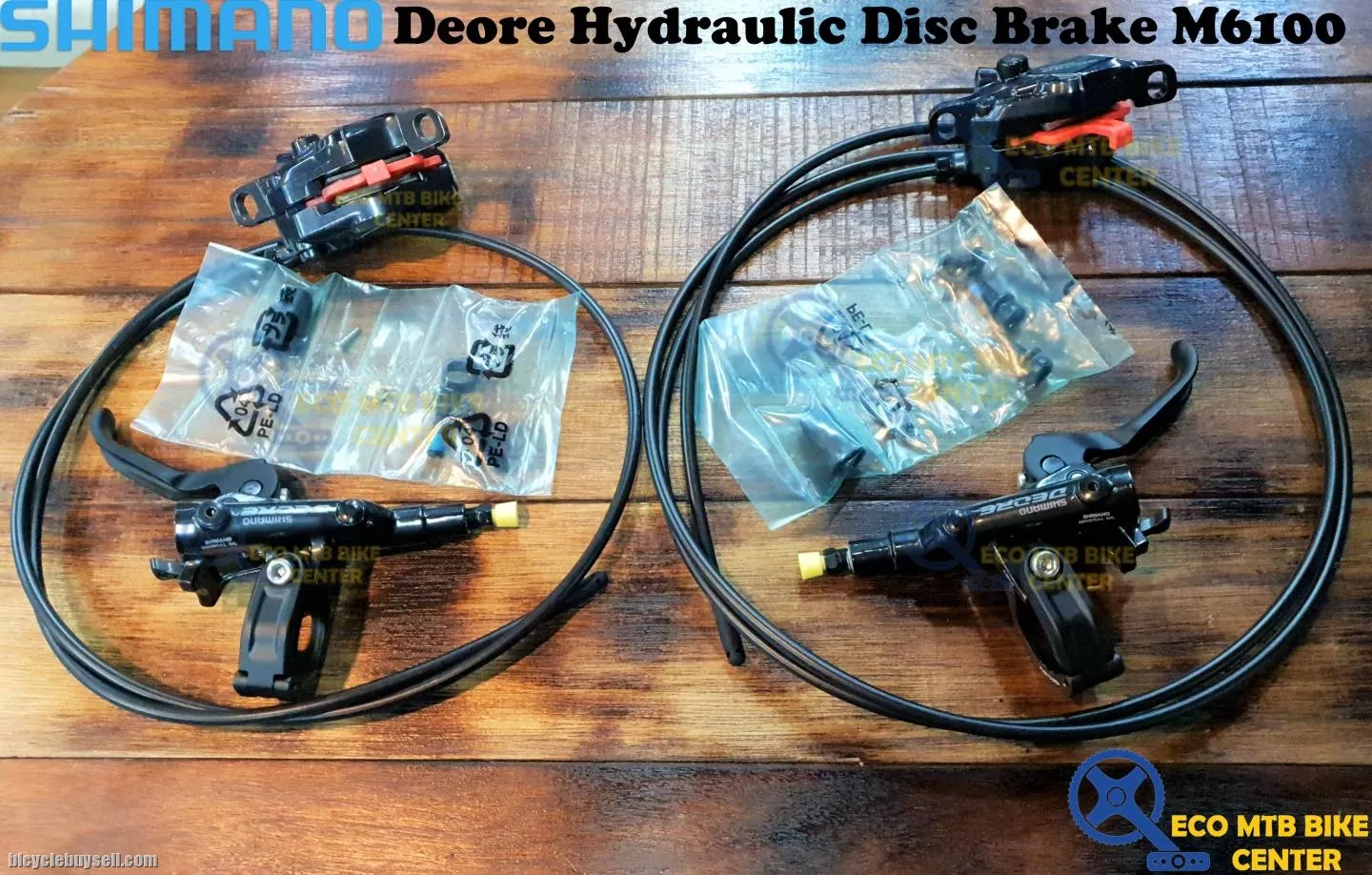

SHIMANO Deore M6100 12s Hydraulic Disc Brake Set BL-M6100 + BR-M6100

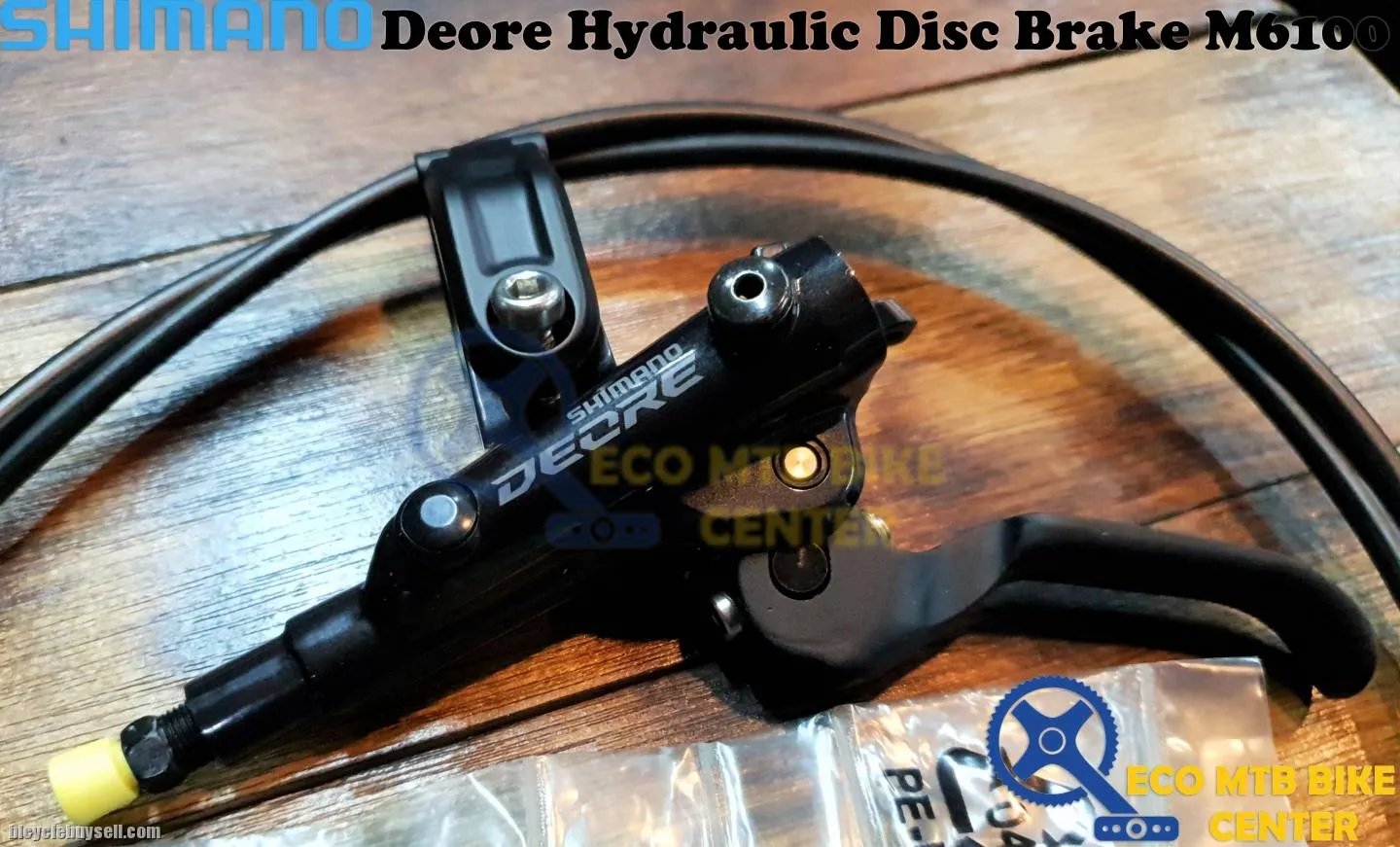

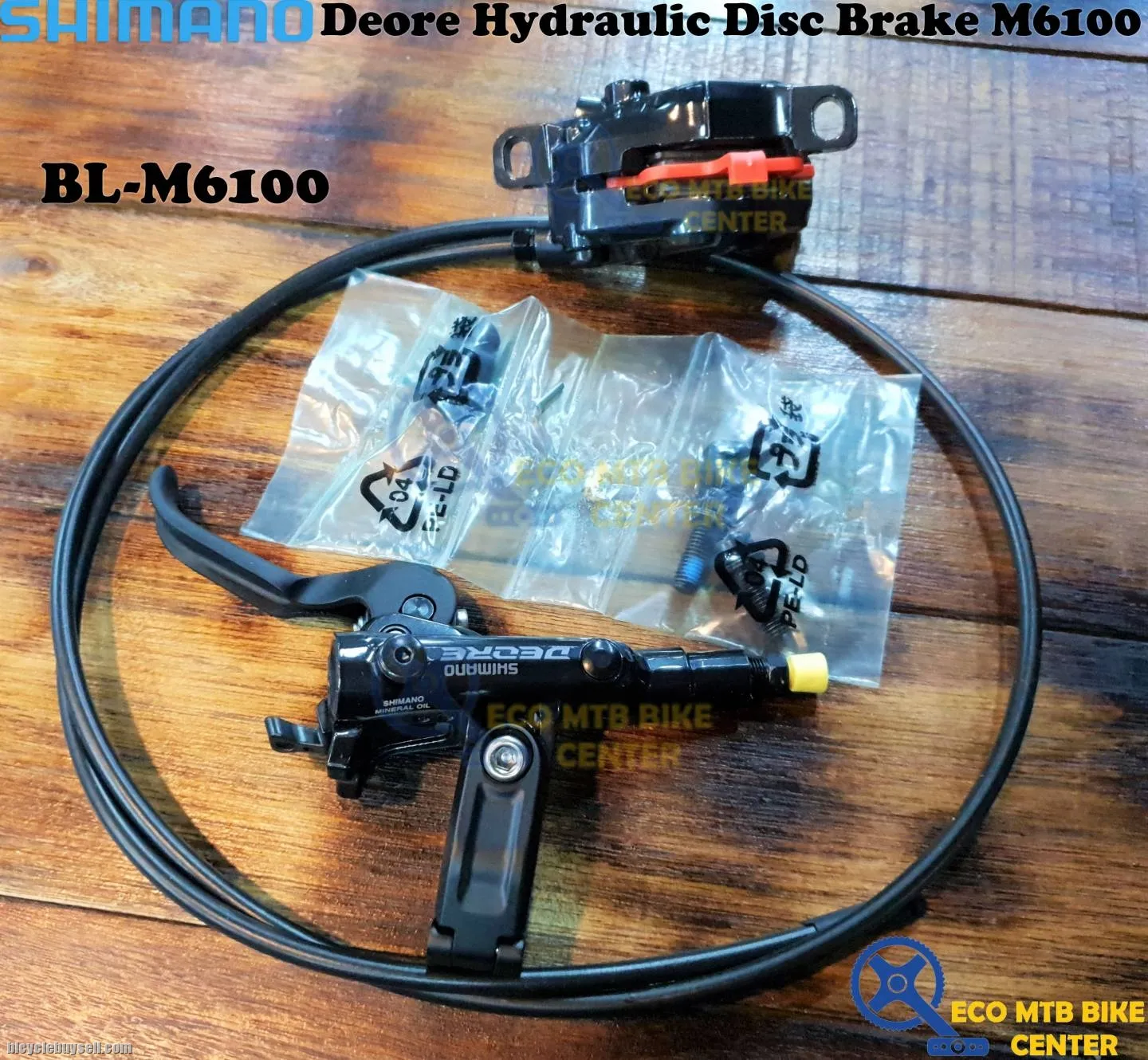

BL-M6100 > SHIMANO DEORE Hydraulic Disc Brake Lever I-SPEC EV With quicker brake engagement and shorter free stroke, the SHIMANO DEORE BL-M6100 brake lever delivers intuitive braking so you can stay focused on the trail ahead. The I-SPEC EV shift lever offers a wider adjustment range for superior rider tuning. FEATURES ~ Intuitive and powerful braking > Quicker brake engagement with shorter free stroke, Rider tunable and action-optimized cockpit ~ High-performance brake control > Additional contact point for a stiffer brake lever ~ 10 deg. rotation angle setting range for I-SPEC EV shifting lever PRODUCT SPECIFICATIONS MODEL NO : BL-M6100 SERIES : DEORE M6100 Series Color : Series Color | Black (SHIMANO Logo) Brake hose color (kit) : Black Brake hose (Kit) : SM-BH90-SS Brake type : Hydraulic disc brake Hose joint : Straight Compatible shift lever mount_I-SPEC EV : ✔ Funnel bleeding : ✔ J-Kit spec (for OEM) : ✔ Lever size (finger) : 2 Oil : SHIMANO Mineral Reach adjust_Tool : ✔ Recommended brake caliper : BR-M6100 BR-M6120 SERVO WAVE : ✔ Compatible shift lever mount_Clamp band : ✔ Clamp band_Open clamp : ✔ Shift lever rotation angle adjust range (I-SPEC EV ; deg.) : 10 BR-M6100 > SHIMANO DEORE Hydraulic Disc Brake Caliper 2-piston The SHIMANO DEORE M6100 caliper features lightweight braking performance and reliable stopping power in all conditions. FEATURES ~ Superior modulation gives you the power you need at low weight > Quick piston retraction, Lightweight 2-piston disc brake caliper PRODUCT SPECIFICATIONS MODEL NO : BR-M6100 SERIES : DEORE M6100 Series Color : Series Color | Black (SHIMANO logo) *** Remarks : *: Only compatible with resin pad ICE TECHNOLOGIES pad compatible caliper : ✔ Brake hose color (kit) : Black Brake hose (Kit) : SM-BH90-SS Brake type : Hydraulic disc brake Caliper fixing bolt_Anti loosen method : Snap ring Caliper fixing bolt_Tool size : 5 mm Hose joint : Straight Mount type : Post-type ONE WAY BLEEDING : ✔ Pad mount : Split pin Stainless Steel Piston : 2 Recommended brake lever : BL-M6100 Recommended disc brake rotor : SM-RT54* SM-RT56* SM-RT64 SM-RT66 J-Kit spec (for OEM) : ✔ Oil : SHIMANO Mineral Compatible Brake Rotor Size_140 mm (SS) : ✔ Compatible Brake Rotor Size_160 mm (S) : ✔ Compatible Brake Rotor Size_180 mm (M) : ✔ Compatible Brake Rotor Size_203 mm (L) : ✔ Pad_Option 1 : G04S-MX Metal (w/o fin) Pad_Standard 1 : G05S-RX Resin (w/o fin) Pad_Standard 2 : J05A-RF Resin (w/ fin) Please visit our website at http://www.ecomtb.com.my OR https://shopee.com.my/eco_mtb ** There is 1-3cm errors due to manual measurement. Please kindly understand. ** Actual product colour may slightly vary due to photographic lighting sources or your monitor settings. ** WE DO NOT DO COD ** ONLINE ONLY ** We support original products only. ** PRICE INDICATED IS ALREADY BEST PRICE, EXCLUDE COURIER
