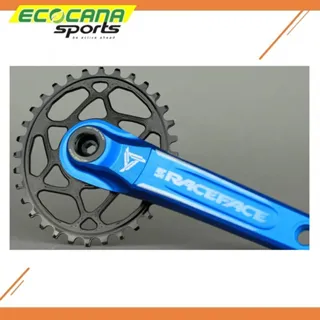

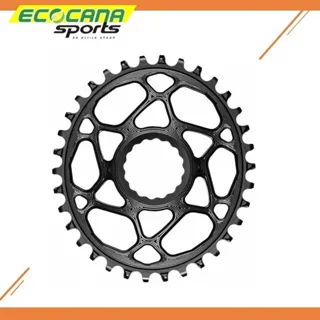

ABSOLUTE BLACK OVAL CHAINRING FOR RACEFACE CINCH DM BOOST

Description

Size (Mass +/-1g): 26T (52g), 28T (54g), 30T (58g), 32T (62g), 34T (69g), 36T (75g) Color: Black Compatibility: RaceFace Cinch system cranks. RF Next SL G4, Next SL, Next R, RF SIXC, RF Turbine, RF Atlas, AEFFECT, RIDE CINCH cranks. Not compatible with Shimano HG+ chain and with Sram Flat Top chain Material: cnc machined 7075 Txxx Aluminum. Long-lasting construction Finish: type II anodizing Chainline: 52mm. 3mm offset Ovality: Optimized to each size separately. Range: 10.2-14.4% and Timing of 110.5-116.3° after TDC (top dead center) Patent Pending Difference between Boost148 and non-boost chainrings is in the offset/dish of the chainring itself only. You would use same crank in both boost and non-boost bikes, but chainring offset has to be different to accommodate chainstay clearance. Boost chainrings have only 3mm offset while non-boost ones 6mm. If you wish to check for frame clearance with new oval ring, below you can find measurement of biggest dimension of the oval (tip to tip of tooth):26T: 118mm ; 28T: 127mm ; 30T: 134mm ; 32T: 143mm ; 34T: 151mm ; 36T: 159mm ADVANTAGES OF OUR SPECIAL DIRECT MOUNT CHAINRINGS:*We mastered our oval chainrings to perfection, so you can get best possible advantage from the oval/elliptical shape. *Finest design to provide excellent weight to strength ratio *One of a kind special oval shape (Patent Pending) *Greatly improves traction and climbing abilities *Unique Patent Pending narrow-wide teeth profiles to keep your chain in place for minimum 12 months! *Special 3D teeth machining for ultimate mud relief decrease wear and noise dramatically *They save weight because they don't need the spider and chainring bolts. *The ability of installation of a smaller ring sizes that can't be mounted on regular spider. *Superb quality and great look. *You will ride faster using ovals. If you keep using round ring then others will get quicker. *You will not "feel" the oval shape at all *Reduces stress on knees OPTIMUM CHAINRING ADJUSTMENT (OCA):Our main/recommended clocking position is a fantastic setup for everyone. However some more seasoned riders may like a bit more aggressive clocking position. RaceFace oval chainring allows you to change clocking position by 22deg both ways from initial setup. This is the only chainring in our line offering this adjustability. Oval (elliptical) chainring does not compromise the work of clutch mechanism in rear derailleur(video at the bottom). It also does not require chain tensioner when using in Singlespeed application. It is the most advanced oval chainring currently on the market.The most advanced, Patent Pending narrow/wide tooth profile on the Market guarantee minimum 12 months of excellent chain retention capabilities! We mean it. Always use a new chain with a new chainring. Remarks -Replace / repair / installation is available at our outlet Ecocana Sports, Gamuda Gardens Waterfront Village, Rawang -Kindly contact us for more (ecocanasports@gmail.com / +6017-2342810) ✔ #originalbrand #readystock #100%new #genuine #authentic ✔ Delivered from Selangor ✔ Parcel delivery is arranged within 1-3 working days ✔ We are #ecocana a SSM registered company
