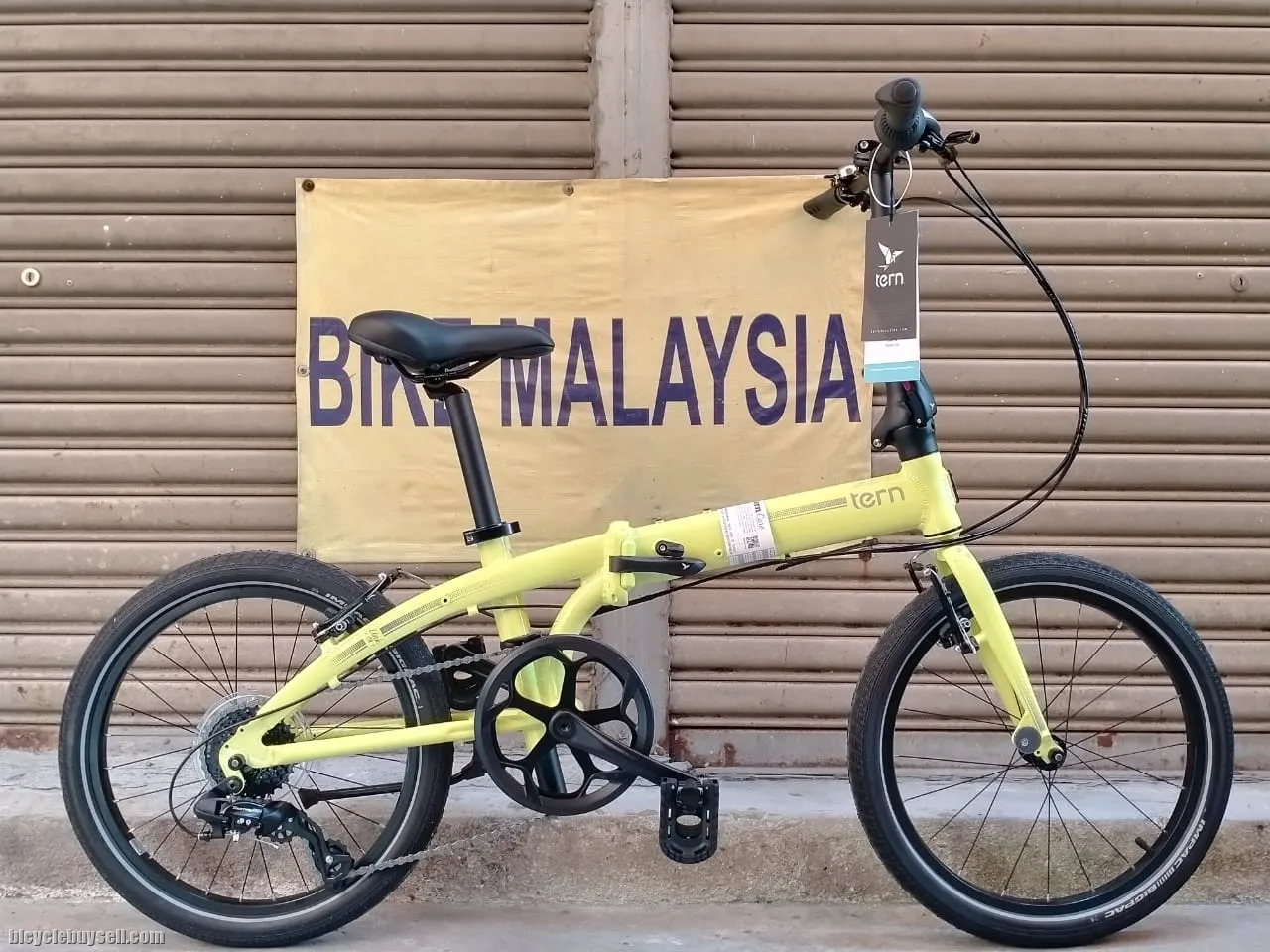

TERN 20" LINK C8
Description
SPECIFICATIONS
GENERAL INFO
COLOR:BLACK RED / YELLOW SILVER
WHEEL SIZE:
20" wheels
SPEEDS:
1 x 8
WEIGHT:
12.8 kg (28.2 lb)
FOLDING SIZE:
39.5 x 80 x 73 cm (15.6" x 31.5" x 28.7")
FOLDING TIME:
10 sec
FRAME SIZES:
One size
GEAR INCHES:
35" - 95" (2.78 - 7.57 m)
DISTANCE: SEATPOST TO HANDLEBAR:
620 mm (24.4")
DISTANCE: SADDLE TO PEDAL:
Min: 700 mm (27.6") Max: 960 mm (37.8")
SUGGESTED RIDER HEIGHT:
142 - 190 cm (4'8" - 6'3")
MAX LOAD WEIGHT:
105 kg (230 lb)
FRAME
FRAME:
Tern Link, aluminum, FBL 2 Joint, 3 patented technologies
FORK:
Integrated, hi-tensile steel
COCKPIT
HANDLEPOST:
Tern Physis 3D, 3D forged, 5 patented technologies
STEM:
Fixed height, forged QR
HEADSET:
Flux, cartridge bearings, Physis integrated
HANDLEBAR:
Flat bar, 6061-AL
GRIPS/BAR TAPE:
BioLogic Ergo, Kraton
SADDLE:
Velo Comfort
SEATPOST:
SuperOversize, 6061-AL, micro-adjust clamp
SEATPOST CLAMP:
SuperOversize, 6061-AL
BRAKES
FRONT BRAKE:
V, aluminum, linear spring
REAR BRAKE:
V, aluminum, linear spring
BRAKE LEVERS:
V, aluminum bracket/lever
BRAKE CABLE & HOUSING:
Anti-compression housing, slick cables
WHEELS
FRONT HUB:
Mini, aluminum Opt: Panasonic dynamo
REAR HUB:
8 spd, aluminum
SPOKES AND NIPPLES:
Stainless steel
RIMS:
Aluminum
TIRES:
Impac BigPac, 50-406, Reflex
TRANSMISSION
SHIFTER(S):
Shimano, 1 x 8 spd, twist
REAR DERAILLEUR:
Shimano Tourney TX
CRANKSET:
Forged 6061 aluminum, 52T
CASSETTE/FREEWHEEL:
Shimano 8 spd, 11-30T
BOTTOM BRACKET:
Two-piece
CHAIN:
8 spd
PEDALS:
Folding, alloy body
SHIFTER CABLE & HOUSING:
SP
BELLS & WHISTLES
BELL:
Aluminum
KICKSTAND:
Deluxe center mount
CLIP SYSTEM:
Magnetix 2.0
LUGGAGE SOCKET:
Yes
FRONT LIGHT:
Opt: Deluxe LED
REAR LIGHT:
Opt: Deluxe LED
RACK(S):
Optional
*Note: These are our standard model specifications. The bike's weight and folded dimension may not include racks and fenders. The specifications for your country may differ slightly. We do our best to ensure that the specifications listed here accurately reflect the exact parts found on our production bikes. However, component changes do occur for various reasons and there may be brief delays on site updates. We reserve the right to make component changes without prior notification, which may cause discrepancies with the information listed on the web.
