HARDTAIL TRAIL RIDING
AGGRESSIVE SINGLETRACK

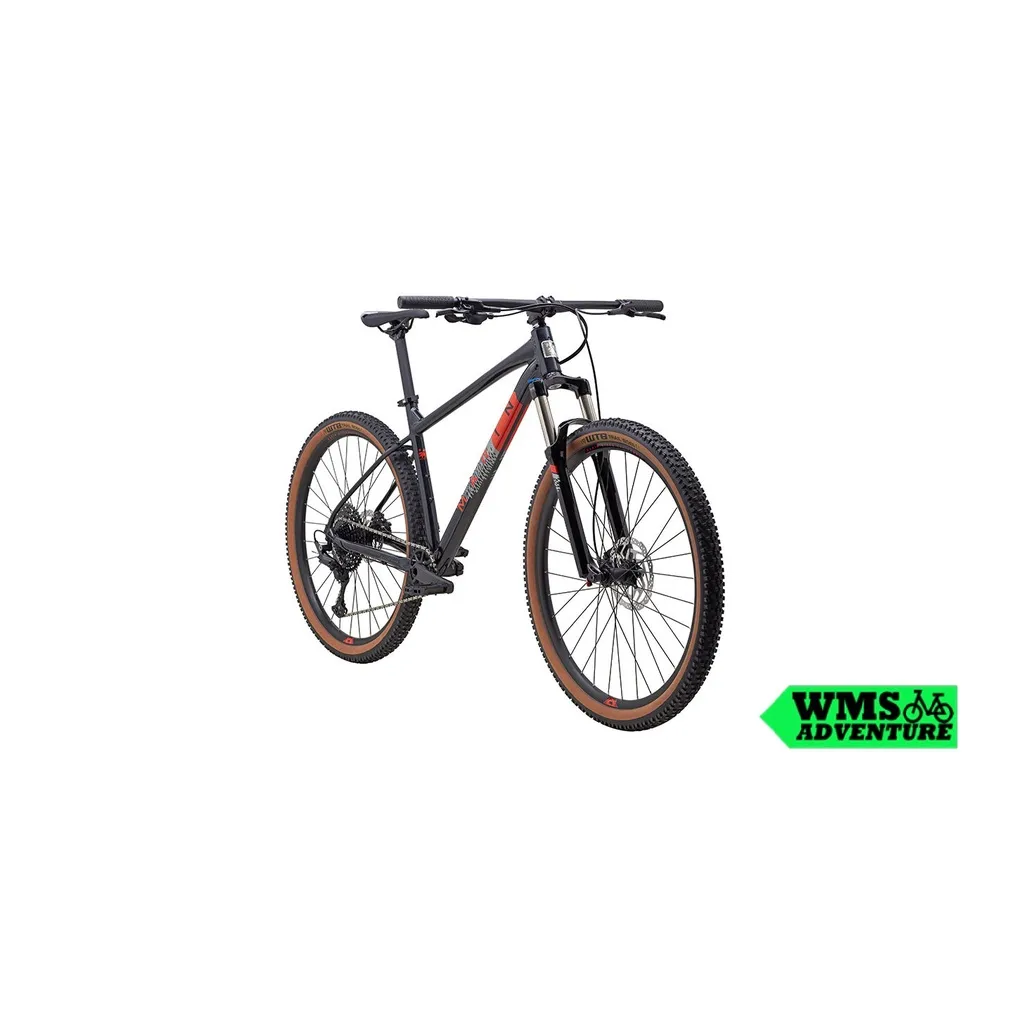

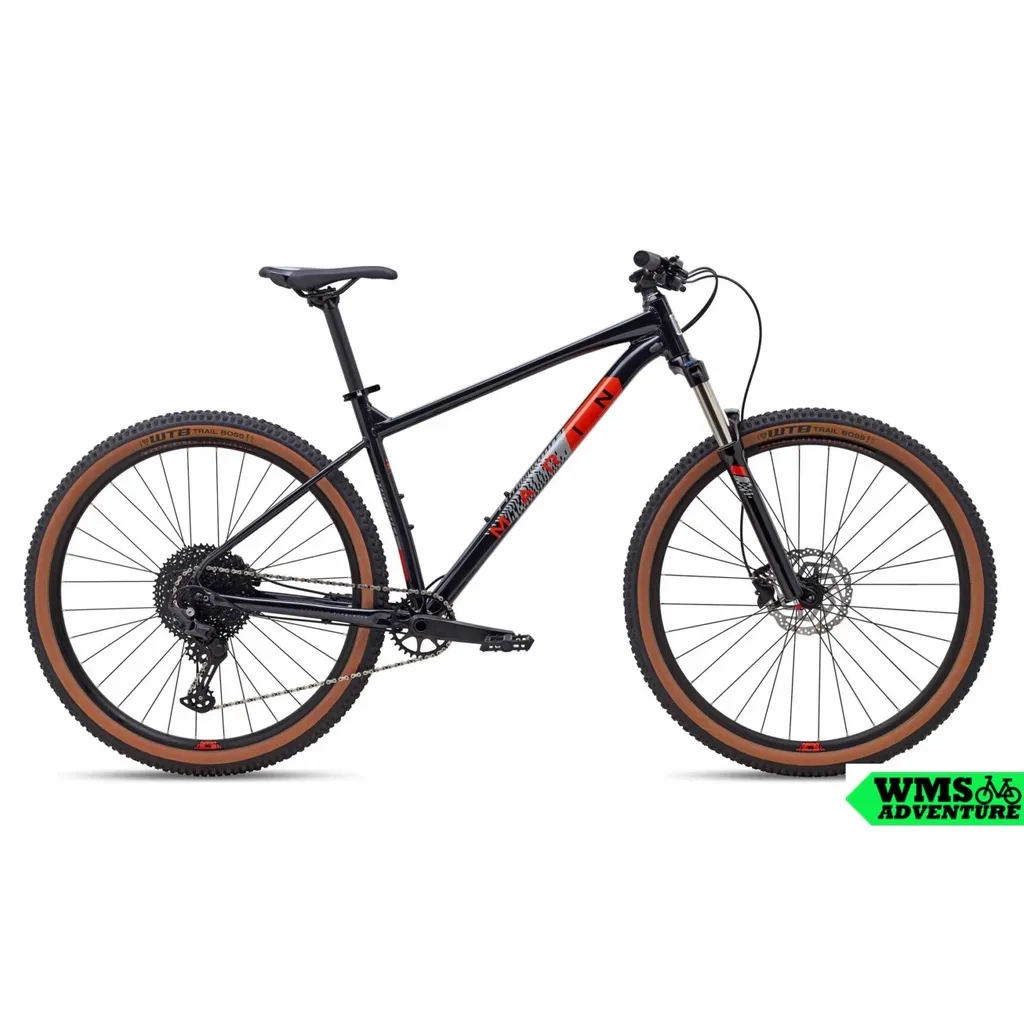

The Bobcat Trail is a capable mountain bike with modern trail geometry build for exploring singletrack trail systems. Best-in-class frames and solid, serviceable spec make the Bobcat Trail a solid choice for the recreational rider looking to step up to modern geo and step deeper into mountain biking, and for the experienced rider in search of an update that doesn’t break the bank.

SPECIFICATIONS
FRAME: Series 2 6061 Aluminum, 27.5" or 29” Wheels, Low Standover, 68mm BB shell, 135mm Forged Dropouts, IS Chainstay Disc Mount, Internal Housing & Dropper Post Routing

FRONT SUSPENSION: SR Suntour XCR LOR-DS, Thru-Axle, 120mm Travel, Hydraulic Lockout, Damping Adjustment, 42mm (27.5") and 46mm (29") Offsets

RIMS: Marin Aluminum Double Wall, 29mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible

HUB, REAR: Forged Alloy, Disc, 32H

HUB, FRONT: Forged Alloy, Disc, 32H

SPOKE, NIPPLES: 14g Black Stainless Steel

TIRES: WTB Trailboss Comp, 27.5/29x2.25”, Wire Bead,
Tyre Color: Black
*********Subject to change without notice.

DERAILLEUR, REAR: Shimano Deore 11-Speed w/Clutch

DERAILLEUR, FRONT: -

SHIFT LEVER: Shimano Deore 11-Speed

CRANKSET: Marin Forged Alloy 1x11, Hollow Spindle, Steel Narrow Wide 32T Chainring

BOTTOM BRACKET: External Sealed Cartridge Bearings

CHAIN: KMC X11

CASSETTE: SunRace 11-Speed, 11-51T

BRAKE, FRONT: Shimano BR-MT201 Hydraulic Disc 180mm Rotor

BRAKE, REAR: Shimano BR-MT201 Hydraulic Disc 160mm Rotor

BRAKE LEVERS: Shimano BL-MT201

HANDLEBAR: Marin 31.8 Riser, 12mm Rise, 780mm Width

STEM: Marin Alloy, 31.8mm Clamp, 45mm

GRIPS: Marin MTB, Closed End

HEADSET
FSA No.10-P

SEATPOST
Marin Alloy, 30.9

SADDLE
Marin MTB

PEDALS
Nylon Platform

Color: Black

Size Available"  27.5 (S)

Specifications, pricing, and availability are subject to change without notice.
