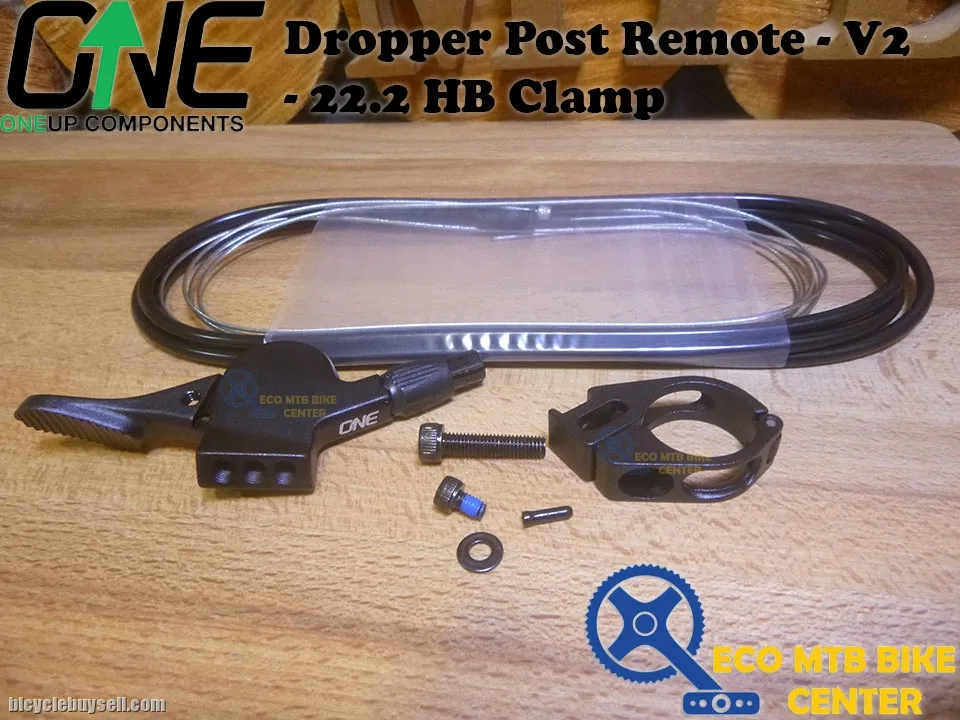

A BETTER REMOTE FOR ANY CABLE OPERATED DROPPER An Aluminum remote with an oversized bearing and a super smooth action. The unique lever position allows you to keep a stronger grip on the bars while actuating your post. Don't think twice about dropping your post, even when charging into technical sections. The OneUp lever mimics your R/H shifter’s inboard upshift paddle position instead of the usual downshift paddle position of most remotes. This position requires considerably less thumb movement to reach the lever. NO BLEEDING The cable setup is quick and easy. The cable clamps at the lever making shortening the housing length for clean routing a breeze. Unlike a hydraulically actuated dropper, there is no temperature sensitivity and If your remote gets damaged you can still lower or extend your post by removing it from your frame and pushing on the actuator by hand. Kit includes cable and housing Compatible with all cable actuated dropper posts. SPECS Compatibility 22.2mm Bar Clamp - All other groups including 12 speed XT M8100 , SLX M7100 and all 10 speed Shimano SRAM Matchmaker X - SRAM MMX clamps Shimano I-spec-EV - 12 speed XTR M9100 only (M8100 and M7100 use 22.2mm clamp) Shimano I-spec II - 11 speed XTR M9000, XT M8000, SLX M8000 only Weight: Remote with 22.2mm Bar Clamp - 46g Remote with SRAM Matchmaker X - 43g Remote with Shimano I-spec-EV - 43g Remote with Shimano I-spec II - 41g INSTALL INSTRUCTIONS 22.2mm Clamp ~ Loosely attach the hinged clamp to your handlebar (Left side of brake for SRAM, Right side of brake for Shimano) ~ Attach the remote body to the clamp using your preferred mounting hole. ~ Torque the remote body to the clamp using a 3mm hex to 3Nm ~ Loosen the 22.2mm clamp and rotate the OneUp dropper remote until the remote body is parallel to the brake lever ~ Snug the 22.2mm clamp to 1Nm max. Shimano I-spec II (11speed M9000, M8000, M6000 only) ~ Remove the lever mounting bolt completely from the left brake using a 4mm hex ~ Depress the "Push to Open" button using a 2mm hex to fully open the brake lever clamp ~ Remove the plastic spacer from the inside of the lever clamp ~ Install the OneUp I-spec II adapter into the lever clamp ~ Loosely reinstall the brake lever clamp onto the handlebar ~ Attach the remote body to the I-spec II adapter using your preferred mounting hole. ~ Torque the remote body to the I-spec II adapter using a 3mm hex to 3Nm ~ Rotate the OneUp dropper remote until the remote body is parallel to the brake lever. ~ Torque the brake lever clamp to the manufacturer's recommendation Shimano I-spec EV (12 speed XTR M9100 only) ~ Remove the lever mounting bolt completely from the left brake using a 4mm hex ~ Depress the "Push to Open" button using a 2mm hex to fully open the brake lever clamp ~ Install the OneUp supplied T-nut into the curved recess on the hinged clamp ~ Reinstall the brake lever clamp onto the handlebar ~ Install the OneUp supplied IS-EV adapter onto the T-nut ~ Attach the remote body to the IS-EV adapter using your preferred mounting hole. ~ Torque the remote body to the IS-EV adapter using a 4mm hex to 3Nm ~ Rotate the OneUp dropper remote until the remote body is parallel to the brake lever. ~Torque the IS-EV adapter bolt to the brake clamp using a 4mm hex to 3Nm. SRAM Matchmaker X ~ Remove Brake lever mounting screw and hinged clamp using a T25 Torx ~ Install the OneUp supplied T-nut into the curved recess on the hinged clamp ~ Reinstall the brake lever clamp onto the handlebar ~ Install the OneUp supplied Matchmaker X adapter onto the T-nut ~ Attach the remote body to the Matchmaker X adapter using your preferred mounting hole. ~ Torque the remote body to the Matchmaker X adapter using a 3mm hex to 3Nm ~ Rotate the OneUp dropper remote until the remote body is parallel to the brake lever. ~ Torque the IS-EV adapter bolt to the brake clamp using a 4mm hex to 3Nm. Please visit our website at http://www.ecomtb.com.my OR https://shopee.com.my/eco_mtb ** There is 1-3cm errors due to manual measurement. Please kindly understand. ** Actual product colour may slightly vary due to photographic lighting sources or your monitor settings. ** WE DO NOT DO COD ** ONLINE ONLY ** We support original products only. ** PRICE INDICATED IS ALREADY BEST PRICE, EXCLUDE COURIER
