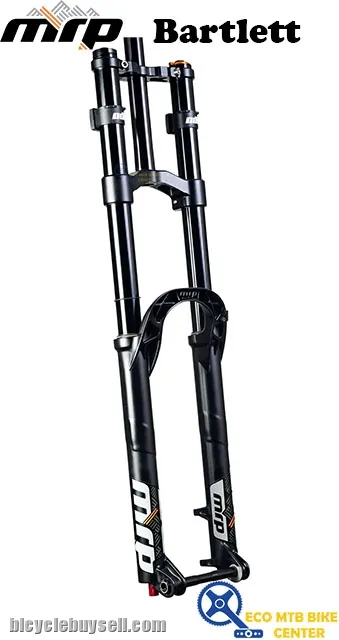

Designed for: Super-Enduro / Freeride / Gravity Taking its name from the natural sandstone freeride playground of Moab’s Bartlett Wash, the Bartlett is the perfect fork for the new breed of ultra-long-travel bikes that are bridging the gap between all-mountain and downhill. Light enough to be at home on a long-travel all-mountain bike, but stiff and durable enough for freeride and bike park abuse, the Bartlett is in a class of its own. The dual-crown design provides space effciency over a single-crown - allowing for longer travel at shorter axle-to-crown lengths - as well as stiffness and steering precision that’s unmatched. Features like the highly-tunable FulFill™ air-spring, low-pressure IFP damper, PSST™ pressure relief valves, and Outcast arch design carryover from the award-winning Ribbon. In addition to our acclaimed Ramp Control™technology, the Bartlett also features tunable air-spring volume by way of threaded spacers that attach to the Ramp Control™ cartridge. So it may easily be used as a secondary fork by riders heading to the bike park or using their enduro bike for DH racing, the Bartlett uses “Boost” 15x110 spacing - allowing those riders to use their existing wheels. ~ New EssenTTial™ DH twin-tube, bladder-free damper utilizing a low-pressure IFP. ~ FulFill™ air-spring with independently adjustable positive and negative air-chambers for greater tunability. ~ Ramp Control™ Pro speed-sensitive ending-stroke control and bottom-out force adjustability. ~ Adjustable internal volume with Huck Puck system. ~ Outcast™ arch design with forward-facing weight reliefs to mitigate mud build up. ~ PSST™ pressure-relief valves that quickly and easily bleed off excess pressure in the lowers caused by elevation and temperature changes. ~ "Boost" spacing and 35mm stanchions. STANCHION SIZE: 35mm TRAVEL: 170, 180, or 190mm WEIGHT: 5.5 lbs. / 2.49 kg for 27.5", 5.7 lbs. / 2.58 kg for 29" SPRING SYSTEM: Air. FulFill™ independent positive and negative chamber system. EXTERNAL ADJUSTMENTS: 8-position low-speed compression, 16-position Ramp Control, and rebound. INTERNAL ADJUSTMENTS: Travel (170-190mm, in 5mm increments), Spring volume with Huck Puck system STEERER OPTIONS: Straight only (1.125"), To preserve maximum ability to use reach and angle-adjust headsets. OFFSET: 27.5" : 49mm, 29" : 51mm BRAKE MOUNT: 180mm (7") PM (Disc only), Not compatible with 160mm (6") rotors. 203mm (8") rotors compatible with appropriate adapter. TIRE CLEARANCE: 27.5" Chassis: 27.5" x 2.6" on 35mm ID rim, 29" Chassis: 29" x 2.6" on 35mm ID rim AXLE: "Boost" spacing - 15x110mm. QR15 standard, "tooled" bolt-on axle optional AXLE-TO-CROWN (length): 27.5" 170mm : 552mm, 27.5" 180mm : 562mm, 27.5" 190mm : 572mm, 29" 170mm : 574mm, 29" 180mm : 584mm, 29" 190mm : 594mm Please visit our website at http://www.ecomtb.com.my OR https://shopee.com.my/eco_mtb ** There is 1-3cm errors due to manual measurement. Please kindly understand. ** Actual product colour may slightly vary due to photographic lighting sources or your monitor settings. ** WE DO NOT DO COD ** ONLINE ONLY ** We support original products only. ** PRICE INDICATED IS ALREADY BEST PRICE, EXCLUDE COURIER
