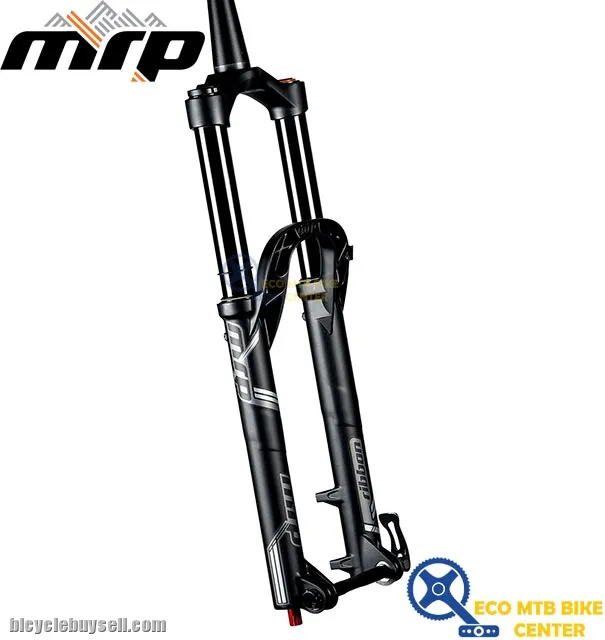

Designed for: Enduro / All-mountain Our goal in designing the Ribbon was seemingly impossible: building on the success of the heralded Stage, create a fork with higher performance, more adjustability, more features, all at a significantly lower weight. Those incredible demands meant we had to reimagine elements like casting design, reconfigure damper architecture, and completely retarget performance goals. The result is not just the best fork we’ve ever produced, it’s the new industry benchmark. ~ FullFill™ air-spring system with independently adjustable positive and negative air-chambers for greater tunability. ~ New EssenTTial™ twin-tube, bladder-free damper utilizing a low-pressure IFP. ~ Outcast™ arch design with forward-facing weight reliefs to mitigate mud build up. ~ PSST™ pressure-relief valves that quickly and easily bleed off excess pressure in the lowers caused by elevation and temperature changes. ~ "Boost" spacing and 35mm stanchions. SPEC : STANCHION SIZE : 35mm TRAVEL : 140, 150, 160, or 170mm WEIGHT : 4.15 lbs. / 1.88 kg SPRING SYSTEM : FulFill independent positive and negative chamber system EXTERNAL ADJUSTMENTS : Positive air-spring pressure, negative air-spring pressure, 8-position low-speed compression, 16-position Ramp Control, and rebound INTERNAL ADJUSTMENTS : Travel (in 5mm increments) STEERER OPTIONS : Tapered Only (1.5 - 1.125") OFFSET : 44mm BRAKE MOUNT : 180mm (7") PM (Disc only), Not compatible with 160mm (6") rotors. 203mm (8") rotors compatible with appropriate adapter. TIRE CLEARANCE : 27.5" x 2.6" on 35mm ID rim AXLE : "Boost" spacing - 15x110mm. QR15 standard, "tooled" bolt-on axle optional AXLE-TO-CROWN (length) : 27.5" 150mm : 542mm, 27.5" 160mm : 552mm, 27.5" 170mm : 562mm Please visit our website at http://www.ecomtb.com.my OR https://shopee.com.my/eco_mtb ** There is 1-3cm errors due to manual measurement. Please kindly understand. ** Actual product colour may slightly vary due to photographic lighting sources or your monitor settings. ** WE DO NOT DO COD ** ONLINE ONLY ** We support original products only. ** PRICE INDICATED IS ALREADY BEST PRICE, EXCLUDE COURIER
