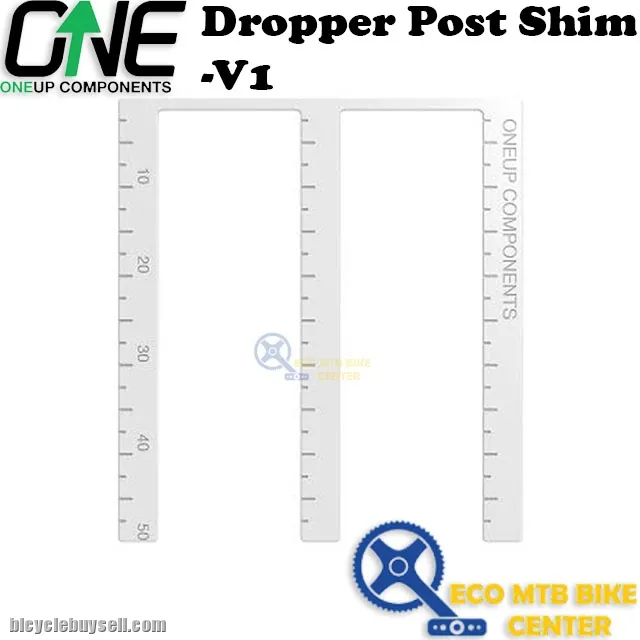

ONEUP COMPONENTS Dropper Post Shim - V1

Description

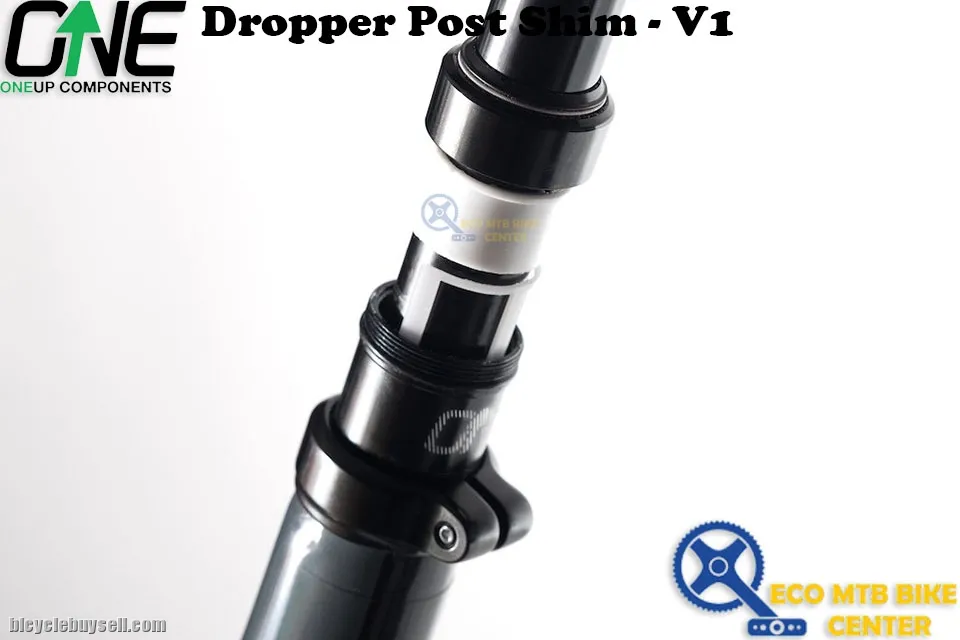

Don’t get stuck between dropper sizes. The unique OneUp travel adjust shims allow you to custom tune your post by lowering the travel and extended length of your post by as much as 50mm in any increment you like. Want an oh so fashionable 128.99mm drop? You got it! Drop tuning can be done on-bike, tool free and without removing the saddle or touching a shock pump. Lowering the post travel also increases bushing overlap, which is great for heavier riders. Compatible with V1 Droppers only 170mm Dropper Post - adjustable down to 120mm 150mm Dropper Post - adjustable down to 100mm SHIM INSTRUCTIONS: 1. With no shim installed, lower your fully extended post into your frame as far as possible. If the post bottoms out inside the frame before the post collar hits the seat clamp, wrap tape around the lower tube just above the seat clamp to mark the height. 2. Unscrew the post collar by hand and slide it up towards the seatpost head. Then gently press the remote lever to pop the upper bushing (White part) out of the lower post. Then slide this bushing up towards the seatpost head 3. Drop your saddle to a mid stroke position at least 75mm below full extension. Install the full 50mm shim by sliding it into the lower tube below the upper bushing, legs down. The middle leg should be lined up with the laser markings on the back of the post.Each leg will fit into a groove inside the lower post. Gently wiggle the shim until it engages each groove and then slide it fully in. 4. Lower the upper bushing and ensure you can push it fully into the lower tube by hand (if you can't you may need to drop the seat a bit more). Reinstall the seat collar by hand. Extend the post fully. Your post is now 50mm shorter. 5. Raise your entire post to a comfortable ride/climbing height and pedal around in your riding shoes/kit to make sure it is correct. There will now be space between your seat clamp and post collar. This is the length you will cut off the shim to maximize your drop height. Measure this with a ruler, or if you have an extra shim you can mark directly on the second shim. 6. Unscrew the collar and gently extend the post to raise the bushing and remove the shim. Trim each leg of the shim by the amount identified above. i.e. If there is 23mm between the post collar/tape and the seat clamp, cut 23mm off the shim legs. Make sure you cut each leg to exactly the same length. 7. Drop the seat to a mid height position at least 75mm below full extension. Reinstall the trimmed shim below the bushing. The shorter shim will be slightly more difficult to install. Use the upper bushing to help push the shim down and if needed use a plastic ziptie to realign the shim inside the lower tube between attempts to fully install it. Make sure the shim and bushing can be fully installed by hand before lowering the seat post collar. 8. Reinstall the seat post collar and tighten by hand. Using the remote fully extend your post. Then lower the extended post into the frame until the post collar or tape touch the seat clamp. Congratulations, you now have the longest dropper post that will fit on your bike! Go Ride. Please visit our website at http://www.ecomtb.com.my OR https://shopee.com.my/eco_mtb ** There is 1-3cm errors due to manual measurement. Please kindly understand. ** Actual product colour may slightly vary due to photographic lighting sources or your monitor settings. ** WE DO NOT DO COD ** ONLINE ONLY ** We support original products only. ** PRICE INDICATED IS ALREADY BEST PRICE, EXCLUDE COURIER
