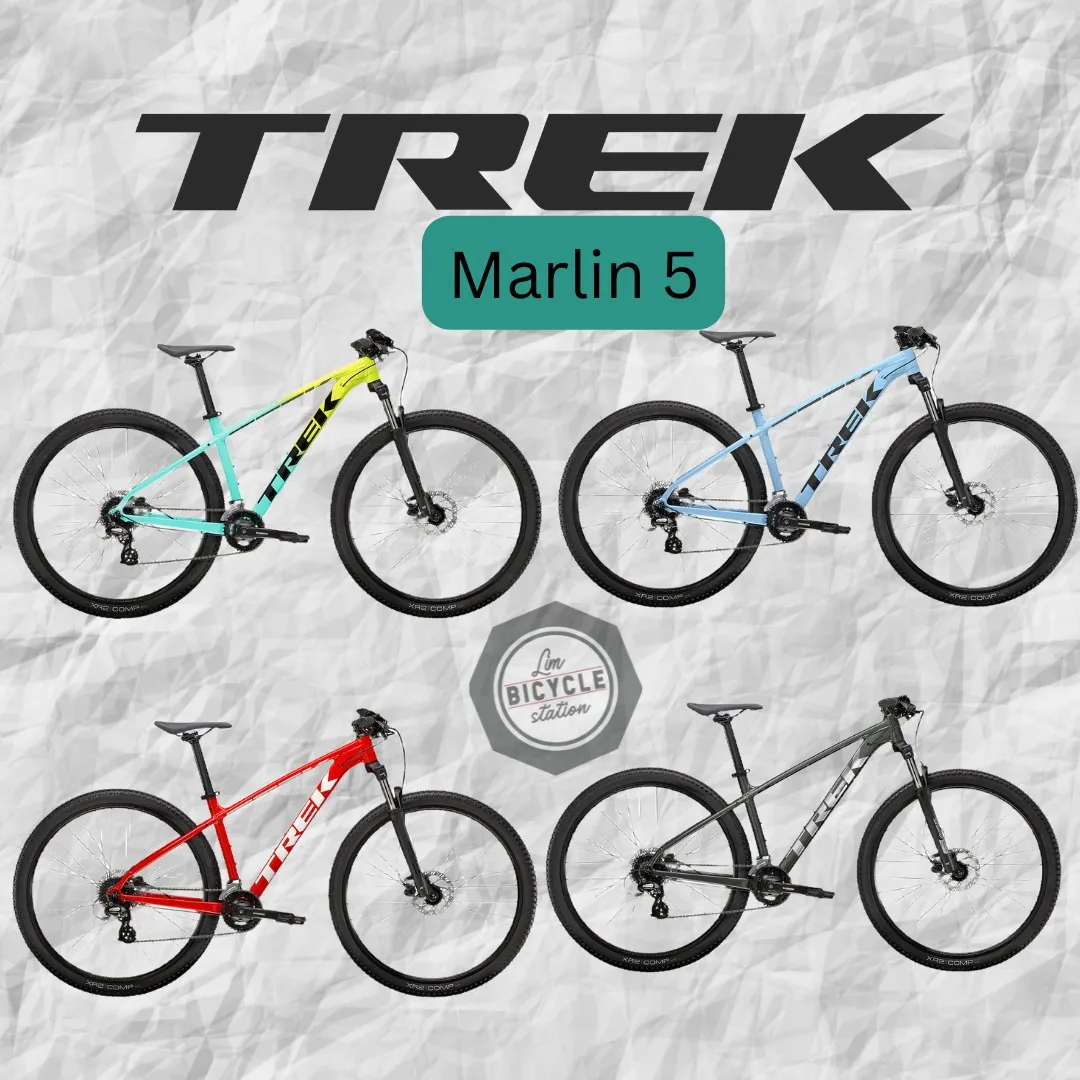

TREK MARLIN 5 2023

Description

Marlin 5 is a trail-worthy daily rider that's perfectly suited for everyday adventures, on and off the trail. A suspension fork, 2x8 drivetrain, and mounts for a rack and kickstand make it an ideal choice for new trail riders or anyone looking for a comfortable, stable commuter with the ruggedness of a real mountain bike. *Frame Size: XXS , XS , S Alpha Silver Aluminum, curved top tube, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5mm QR Size: M , ML , L , XL , XXL Alpha Silver Aluminum, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5mm QR *Fork Size: XXS SR Suntour XCM 30, coil spring, lockout, preload, 100mm QR, 100mm travel, 26'' wheel Size: XS SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42mm offset for 27.5'' wheel, 100mm QR, 80mm travel Size: S SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42mm offset for 27.5'' wheel, 100mm QR, 100mm travel Size: M , ML , L , XL , XXL SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 46mm offset for 29'' wheel, 100mm QR, 100mm travel Max compatible fork travel 100mm (XS & S: 490mm axle-to-crown, M & up: 509mm axle-to-crown) Wheels Hub front Formula DC-20, alloy, 6-bolt, 5x100mm QR Hub rear Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR *Rim Size: XS , S Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve, Black Size: M , ML , L , XL , XXL Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve *Tire Size: XXS Bontrager XR2 Comp, wire bead, 30 tpi, 26x2.20'' Size: XS , S Bontrager XR2 Comp, wire bead, 30 tpi, 27.5x2.20'' Size: M , ML , L , XL , XXL Bontrager XR2 Comp, wire bead, 30 tpi, 29x2.20'' Max tire size Frame: 29x2.20" (XS & S: 27.5x2.4") Fork: See manufacturer Drivetrain Shifter Shimano Altus M315, 8 speed Front derailleur Shimano Altus M315, 34.9mm clamp, top swing, dual pull Rear derailleur Shimano Altus M310 *Crank Size: XXS Prowheel TM-CY10, 36/22, 160mm length Size: XS , S , M Shimano M315, 36/22, 170mm length Size: ML , L , XL , XXL Shimano M315, 36/22, 175mm length Bottom bracket Sealed cartridge, 73mm Cassette Shimano HG200, 12-32, 8 speed Chain KMC Z8.3, 8 speed Max chainring size 1x/2x: 34T, 3x: 42T Components Saddle Bontrager Arvada, steel rails, 138mm width *Seatpost Size: XXS Bontrager alloy, 31.6mm, 12mm offset, 300mm length Size: XS , S , M Bontrager alloy, 31.6mm, 12mm offset, 330mm length Size: ML , L , XL , XXL Bontrager alloy, 31.6mm, 12mm offset, 400mm length *Handlebar Size: XXS , XS Bontrager alloy, 31.8mm, 5mm rise, 690mm width Size: S , M , ML , L , XL , XXL Bontrager alloy, 31.8mm, 5mm rise, 720mm width *Stem Size: XXS Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 35mm length Size: XS Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 50mm length Size: S Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 60mm length Size: M Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 70mm length Size: ML , L Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 80mm length Size: XL , XXL Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 90mm length Headset Semi-integrated, 1-1/8'' Brake Tektro HD-M275 hydraulic disc Brake Set Tektro HD-M275 hydraulic disc, 160mm rotor Weight Weight M - 13.97 kg / 30.81 lbs Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). ( Call / What's app ) 013-777 3842 Liang whatsapp link : https://wa.me/message/END3ZPZZPMSPJ1 Lim Bicycle Station Penang (Trek Bicycle Penang) 45, Jalan Anson Geoge Town 10400 George Town, Penang.
